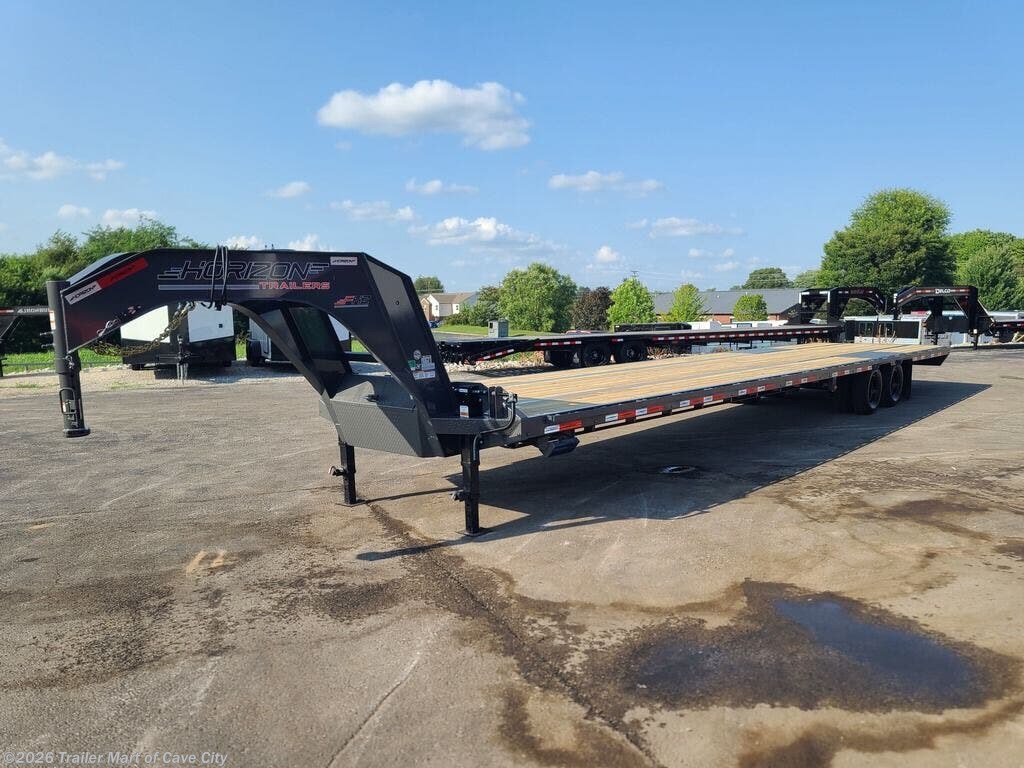

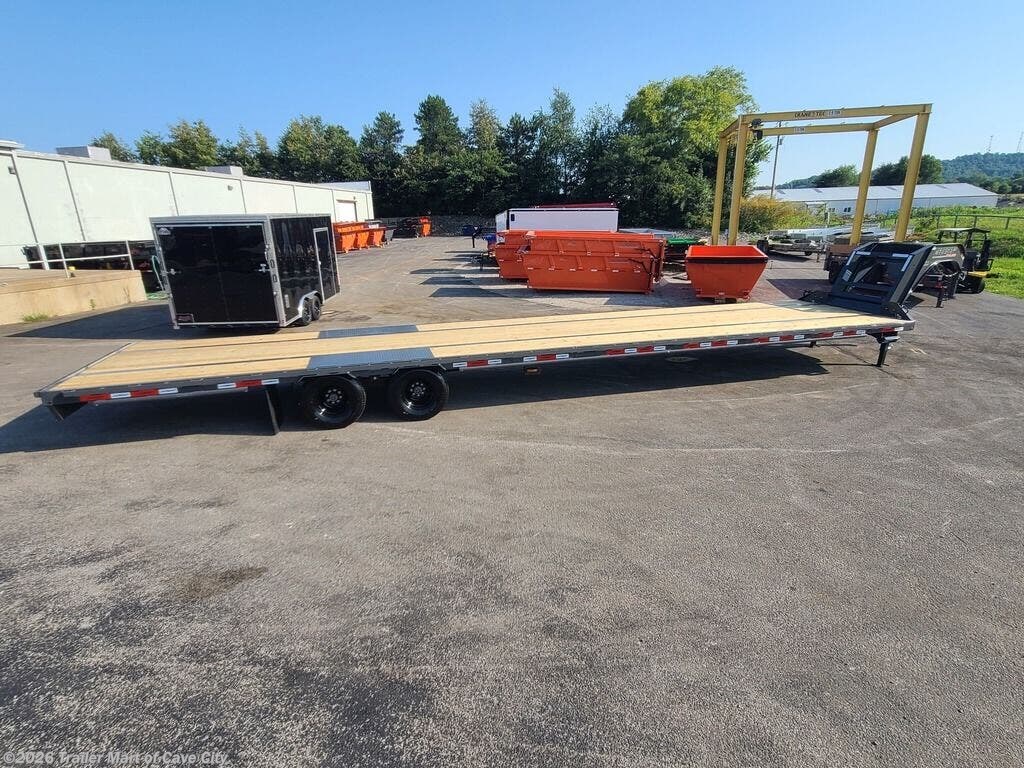

New 2024 Horizon Trailers FHZGN 40' 10k Deckover Trailer

INVENTORY HIGHLIGHTS:

Sale!

Price $24,395.00
Sale Price $18,695.00

Estimated Payments


INTEREST RATE

11.99%

CASH/TRADE

$1,870

TERM

5 Years

EST. PAYMENT

$374

Print Unit Info

TRAILER SPECS
GN LENGTH: 40'
DECK WIDTH: 102"
DECK HEIGHT: 35"
WEIGHT RATINGS
GAWR: 10,000 lbs
GVWR: 21,800 lbs - 22,400 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
COLORS: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White
WARRANTY
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE
TYPE: Fabricated I-Beam
LENGTH: 98" (From Behind Riser)
HEIGHT: 70" (From Underneath Neck)

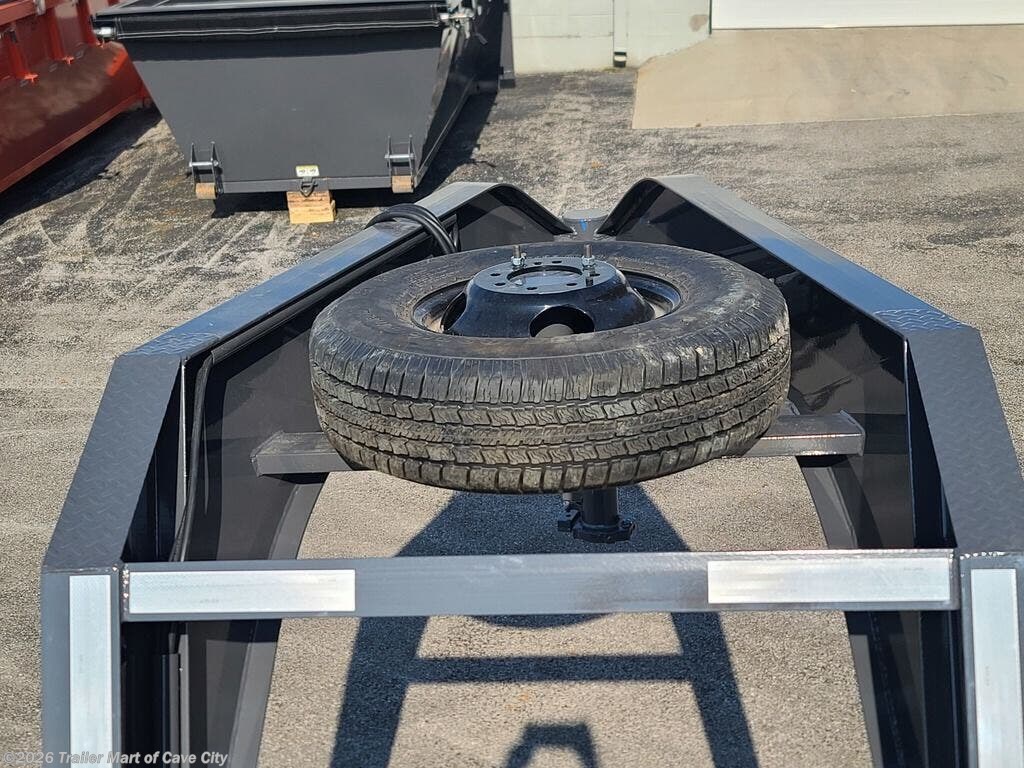

SPARE: Weld On Spare Tire Mount
SPARE TIRE: ST235/80R16 10 Ply Tire (3,080 lbs)
COUPLER

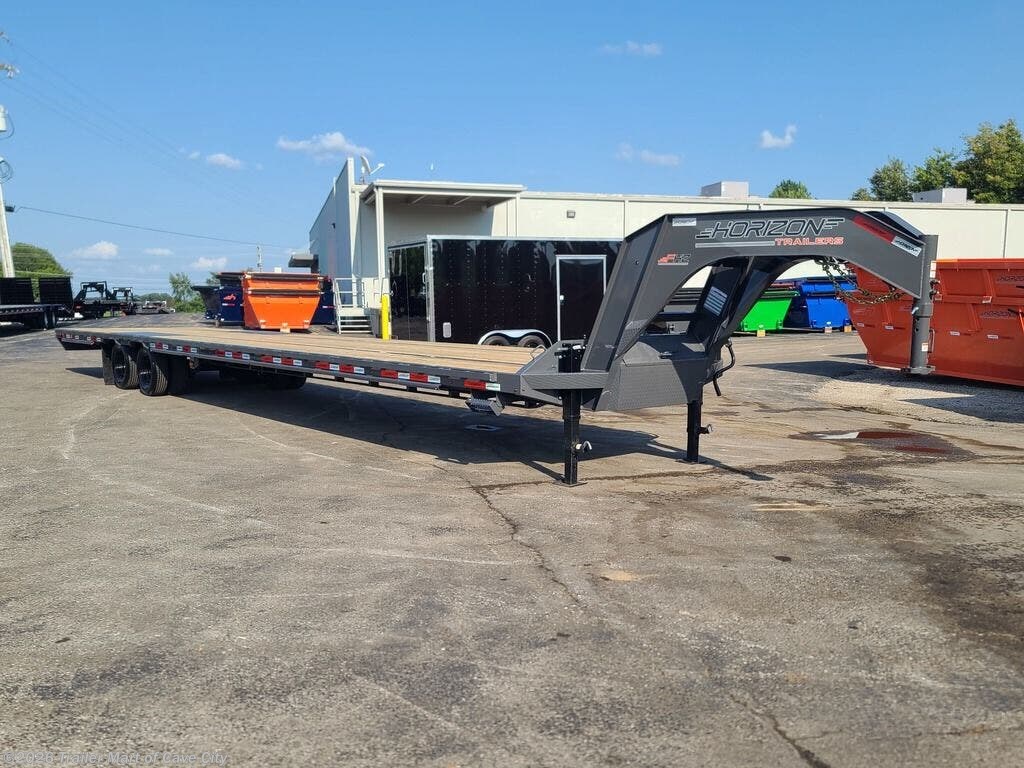

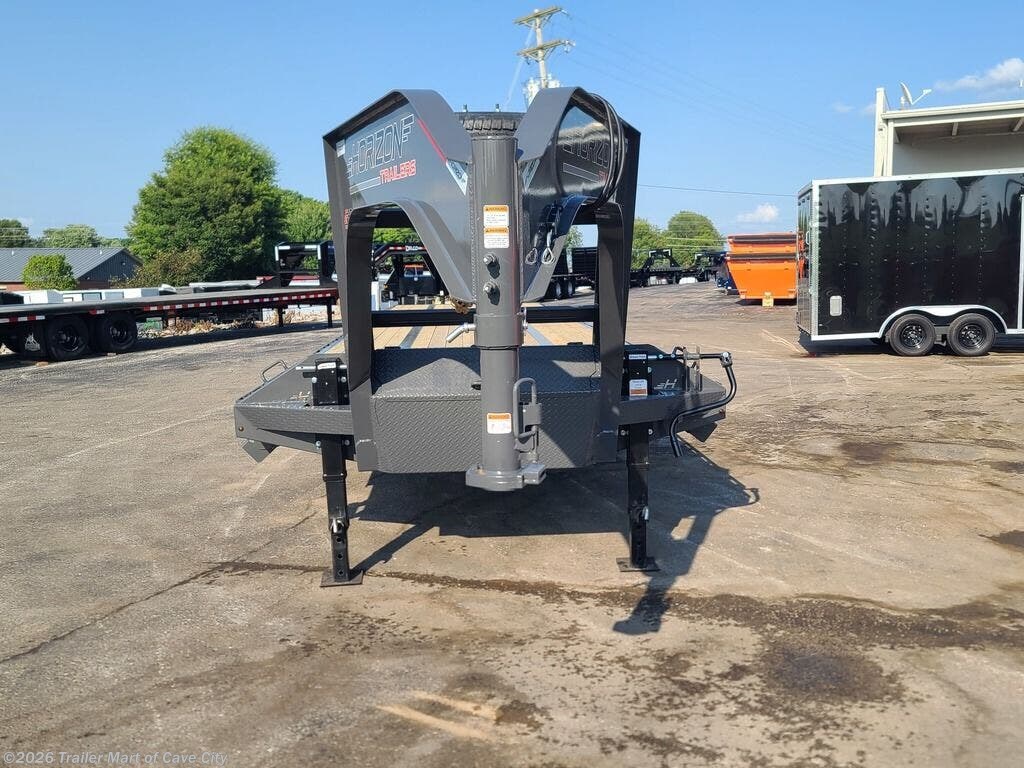

STANDARD COUPLER GN: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
JACKS

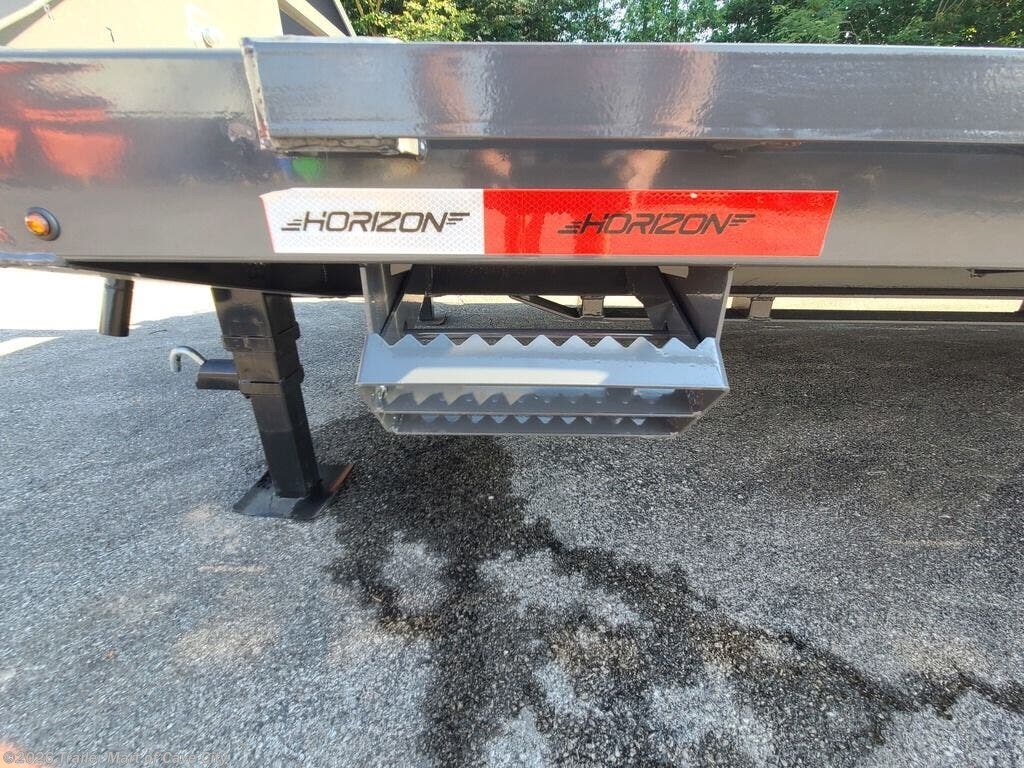

FRONT JACKS GN: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
TOOLBOX

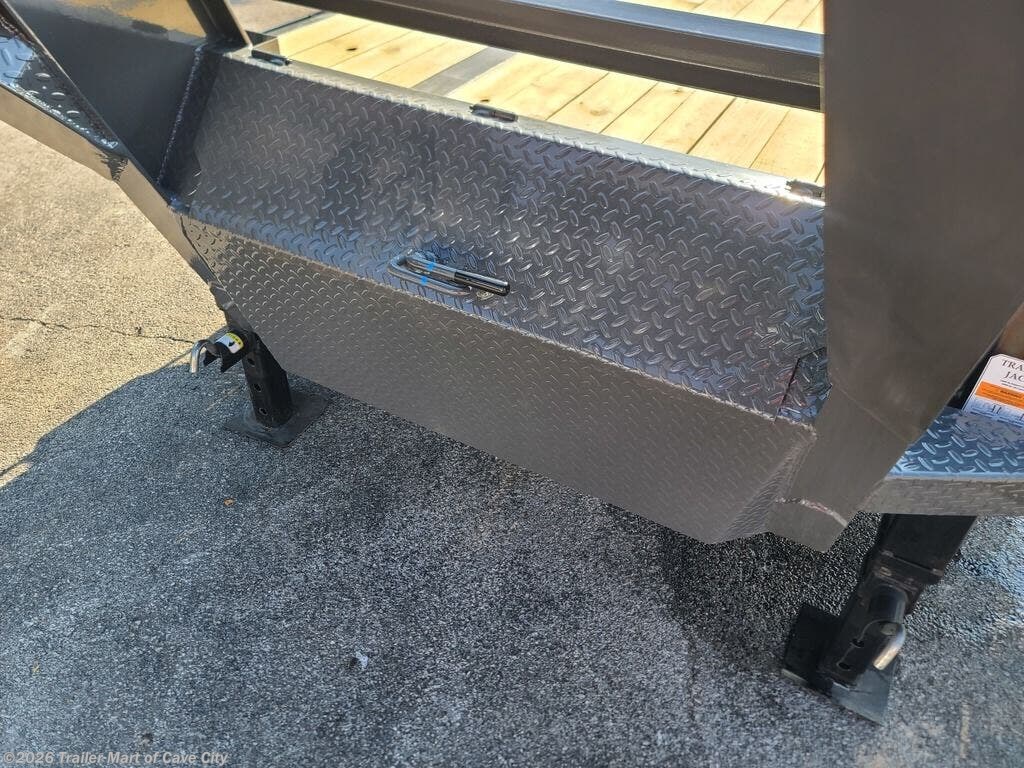

TOOLBOX GN: Lockable Toolbox Gn
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS
4" Torque Tube 36' - 40'
FRAME
MAIN FRAME: Bridged 12" I-Beam (19 lbs/ft)
SIDE
LEFT SIDE: Lockable Toolbox Chassis (Houses Battery and Pump)
DECK: Straight Deck
DECK WIDTH: 102"
DECK HEIGHT: 35"

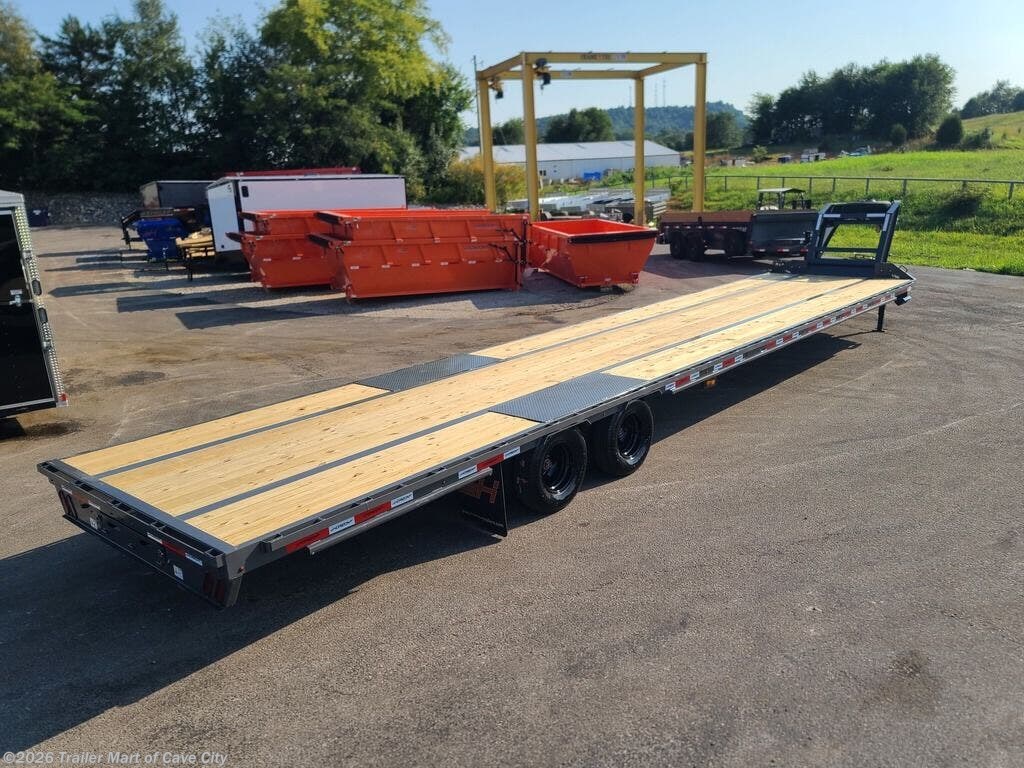

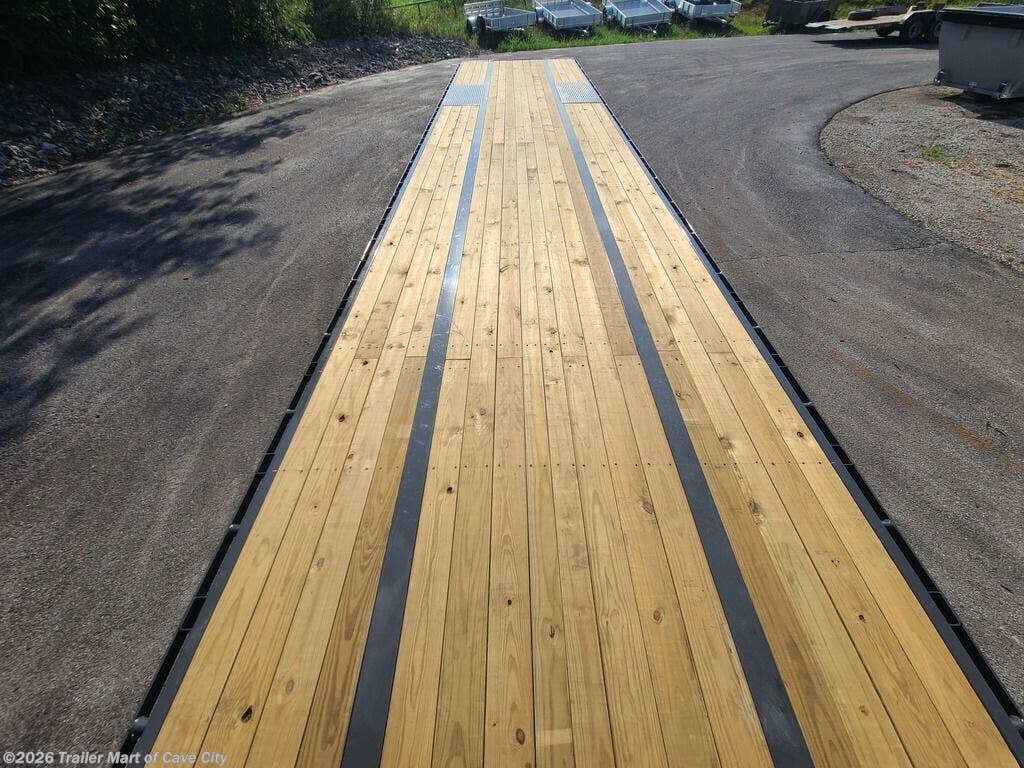

FLOORING: Pine Lumber Floor
FRAME: 2" x 6" x 11ga. Tubing Bed Frame
CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
SIDES
Ratchet Slide Track Right Side
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
RUNNING GEAR
TIRES
TYPE: Radial Tires
SIZE: ST235/80R16
PLY: 10 ply
RATING: 3,080 lbs
RIMS: 16" Black Mod Wheels
SUSPENSION
AXLE TYPE: 2 - 10k Lippert Electric Brake Dual Oil Bath Spring Axles
BOLT PATTERN: 8 On 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights
SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape

Upgrades:

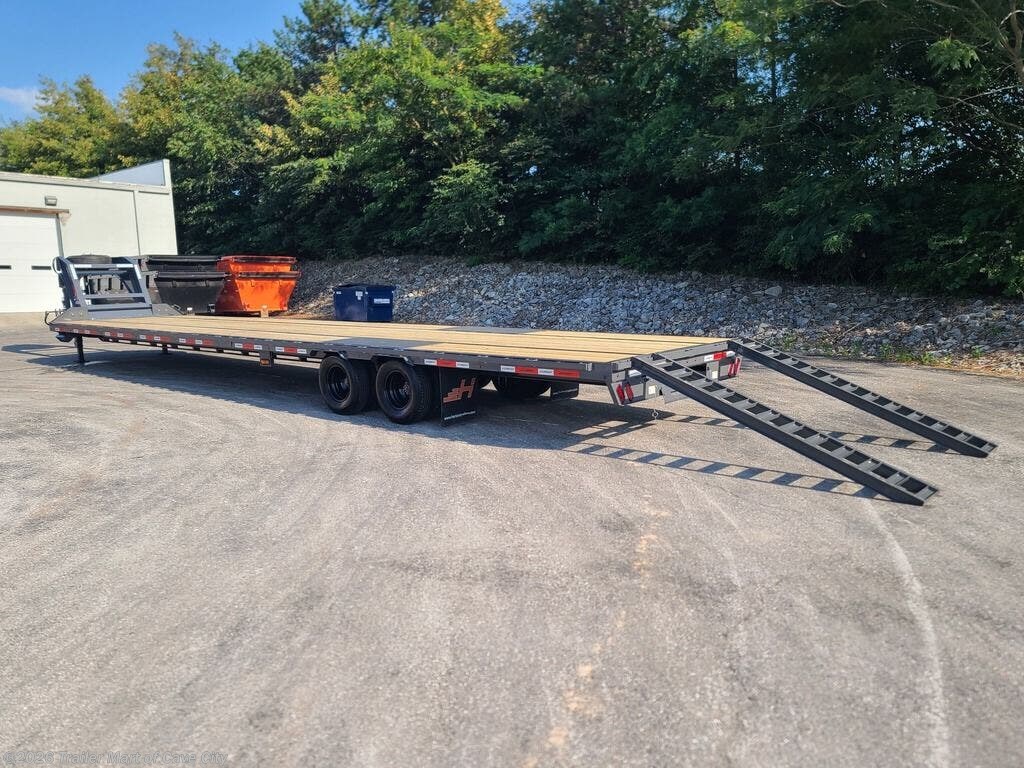

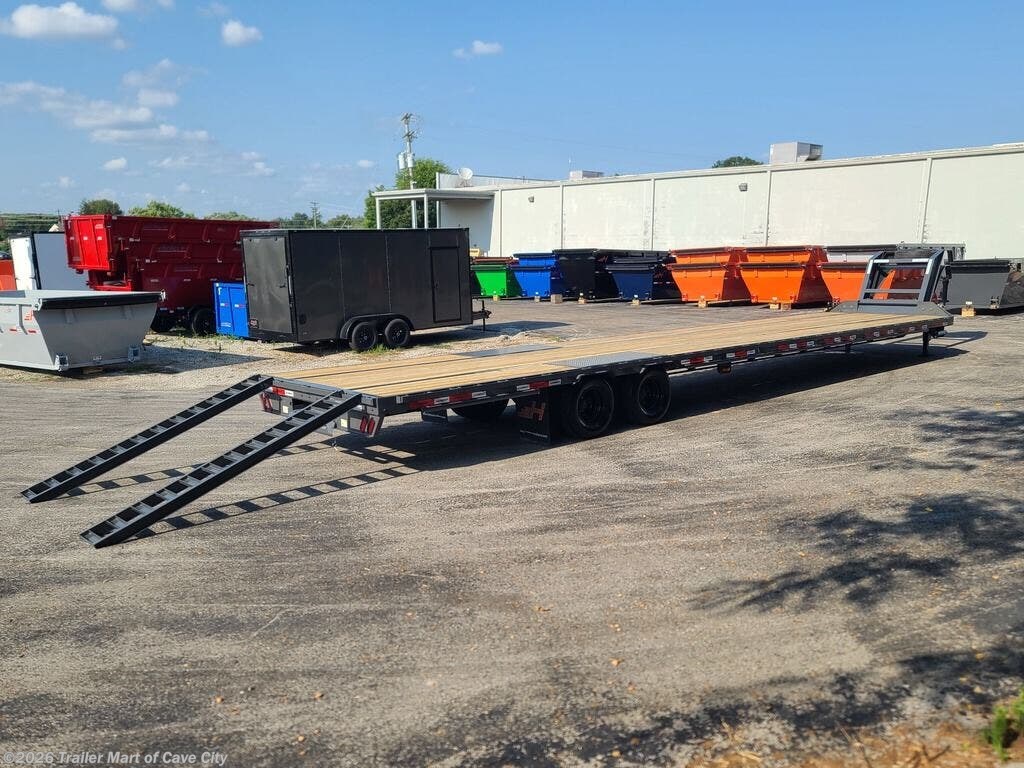

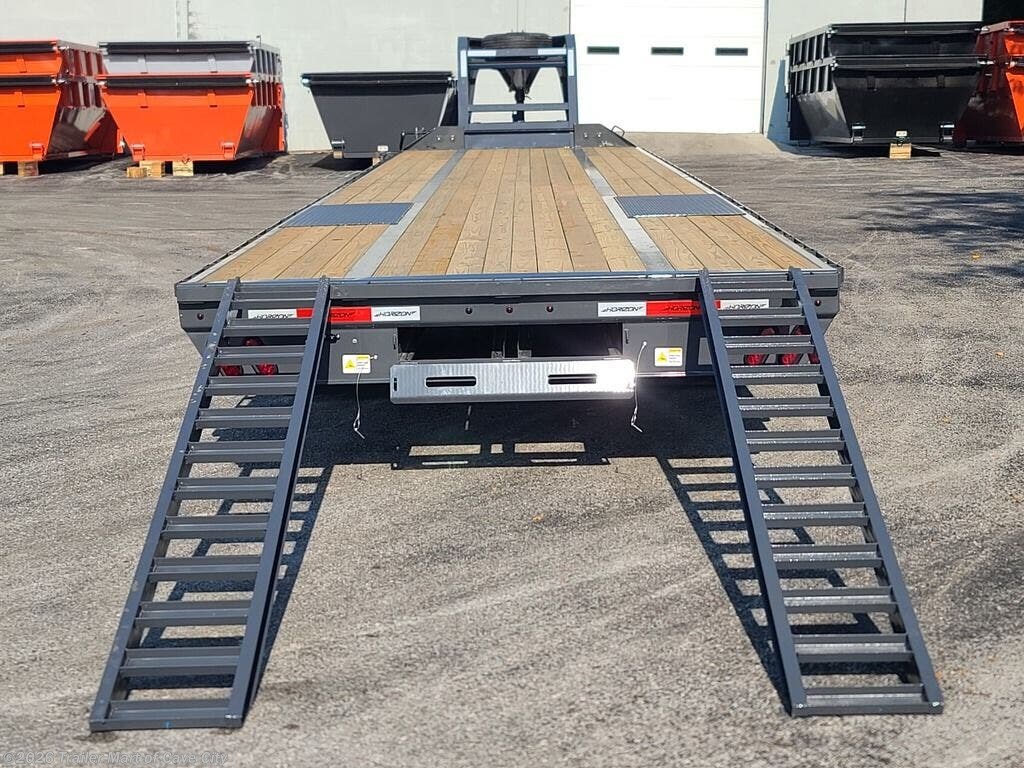

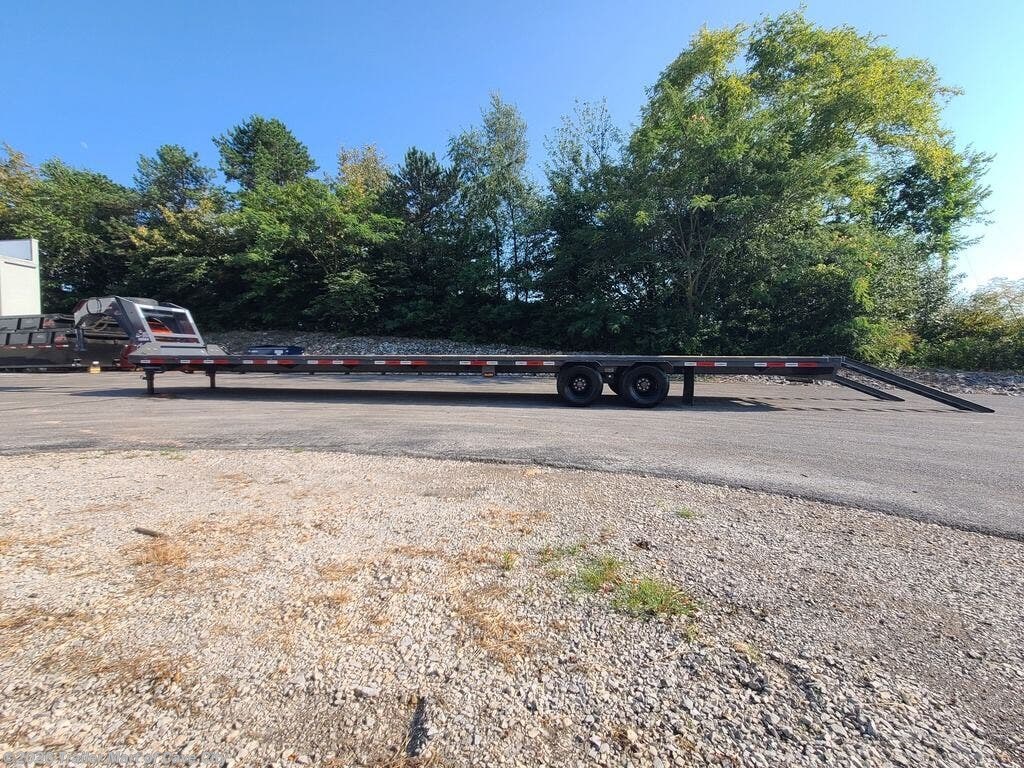

Slide-In Ramps

Slide Track

Straight Deck

Condition:

New

Exterior Color:

Gray

GVWR:

22,400 lb

Dry Weight:

9,130 lb

Payload Capacity:

13,270 lb

Hitch Type:

Gooseneck

Stock #:

04038

VIN:

3H7GF4024RR004038

Location:

Cave City, KY

Year:

2024

Floorplan:

FHZGN 40' 10k Deckover Trailer

Length:

40' 0"

Width:

8' 6"

INTEREST RATE

11.99%

CASH/TRADE

$1,870

TERM

5 Years

EST. PAYMENT

$374

CONTACT US


Please enter a First Name.
Please enter a Last Name.
Please enter a valid email.
Please enter a valid Phone number: 123-456-7890
Please enter a message in the Comments.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

SIMILAR UNITS FOR SALE


DEALER INFORMATION


Trailer Mart of Cave City

502 East Happy Valley Street Cave City, KY 42127

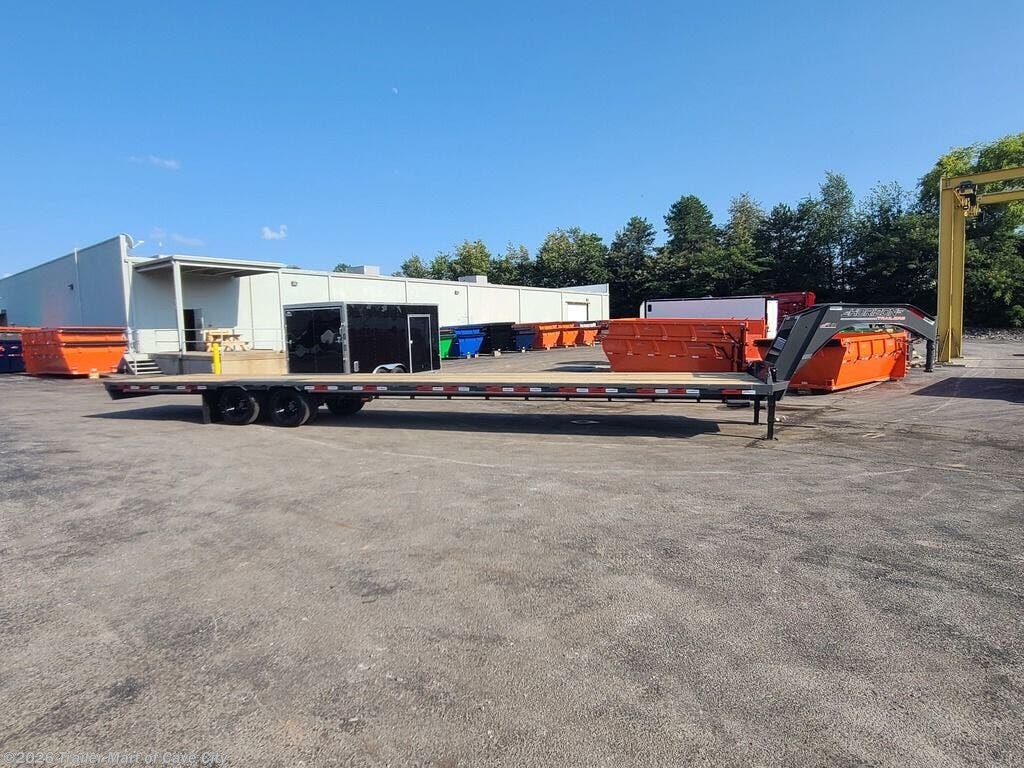

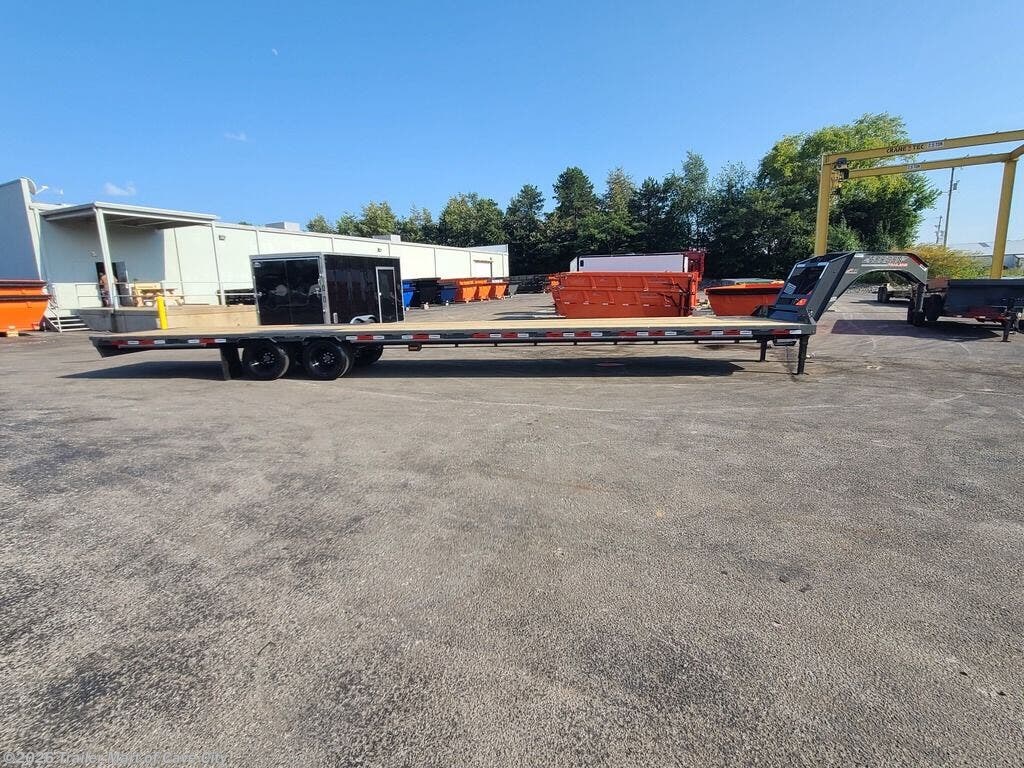

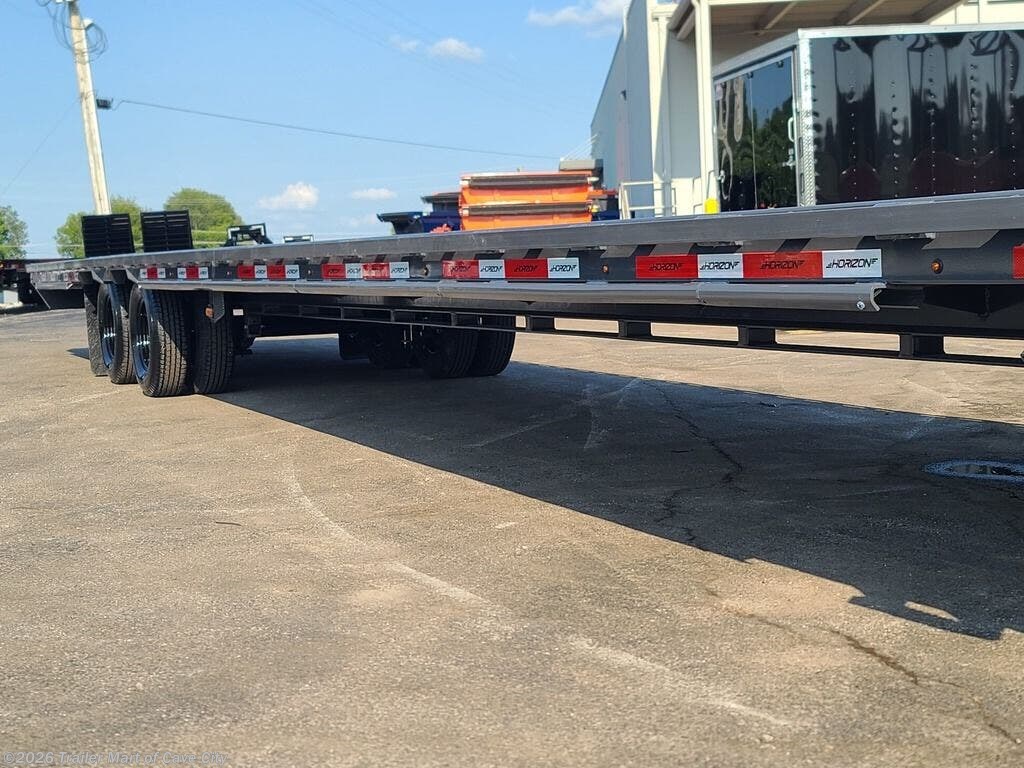

2024 Horizon Trailers FHZGN 40' 10k Deckover Trailer Gallery
