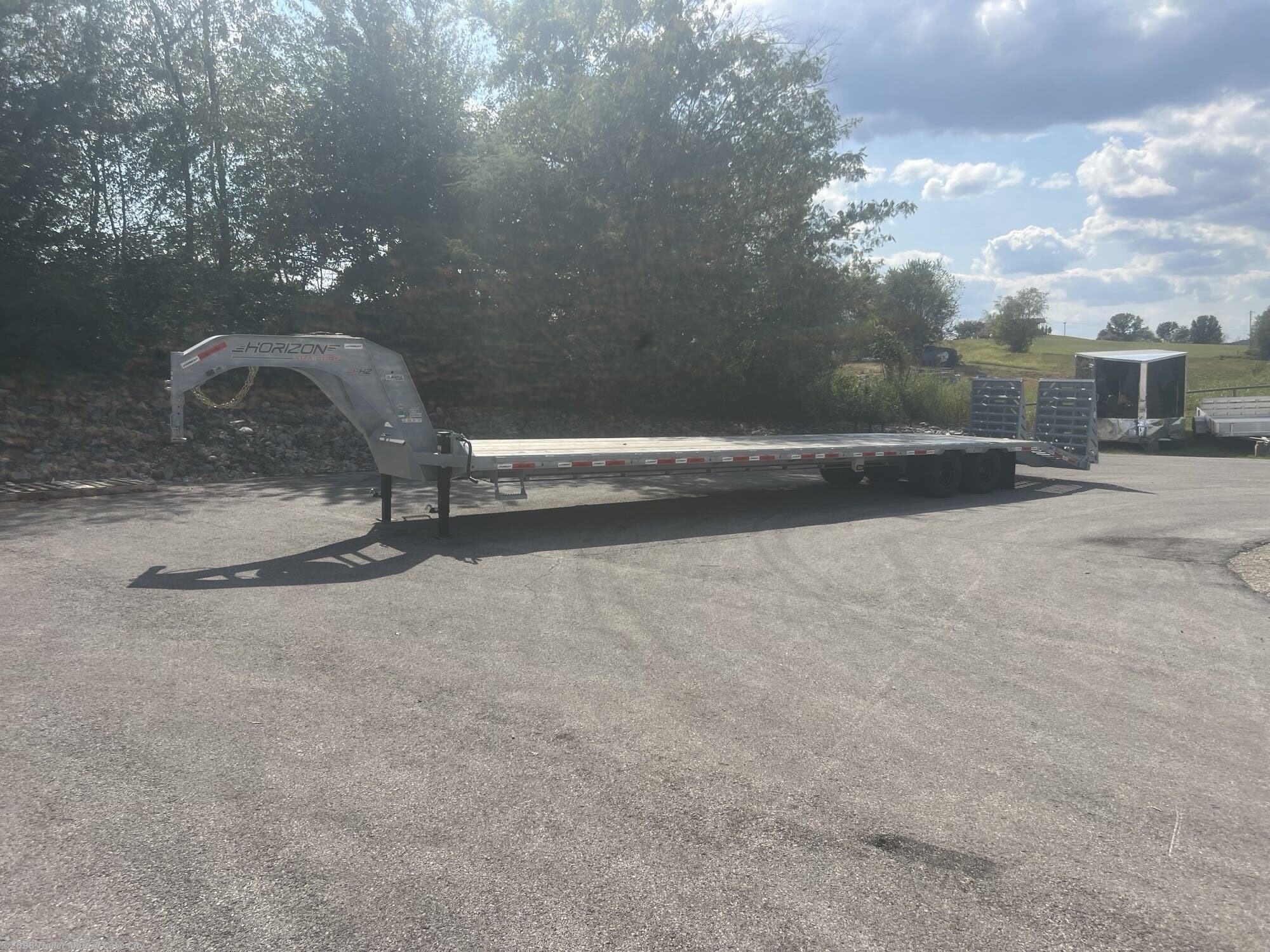

New 2024 Horizon Trailers FHZGN 40' 10k Deckover Trailer

TRAILER SPECS
GN LENGTH: 40'
DECK WIDTH: 102"
DECK HEIGHT: 35"
WEIGHT RATINGS
GAWR: 10,000 lbs
GVWR: 21,800 lbs - 22,400 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
COLORS: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White
WARRANTY
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE
TYPE: Fabricated I-Beam
LENGTH: 98" (From Behind Riser)
HEIGHT: 70" (From Underneath Neck)
SPARE: Weld On Spare Tire Mount
SPARE TIRE: ST235/80R16 10 Ply Tire (3,080 lbs)
COUPLER
STANDARD COUPLER GN: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
JACKS
FRONT JACKS GN: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
TOOLBOX
TOOLBOX GN: Lockable Toolbox Gn
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS
4" Torque Tube 36' - 40'
FRAME
MAIN FRAME: Bridged 12" I-Beam (19 lbs/ft)
SIDE
LEFT SIDE: Lockable Toolbox Chassis (Houses Battery and Pump)
DECK: Straight Deck
DECK WIDTH: 102"
DECK HEIGHT: 35"
FLOORING: Pine Lumber Floor
FRAME: 2" x 6" x 11ga. Tubing Bed Frame
CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
SIDES
Ratchet Slide Track Right Side
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
RUNNING GEAR
TIRES
TYPE: Radial Tires
SIZE: ST235/80R16
PLY: 10 ply
RATING: 3,080 lbs
RIMS: 16" Black Mod Wheels
SUSPENSION
AXLE TYPE: 2 - 10k Lippert Electric Brake Dual Oil Bath Spring Axles
BOLT PATTERN: 8 On 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights
SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape

Upgrades:
Mountain Ramps

Rachet Slide
