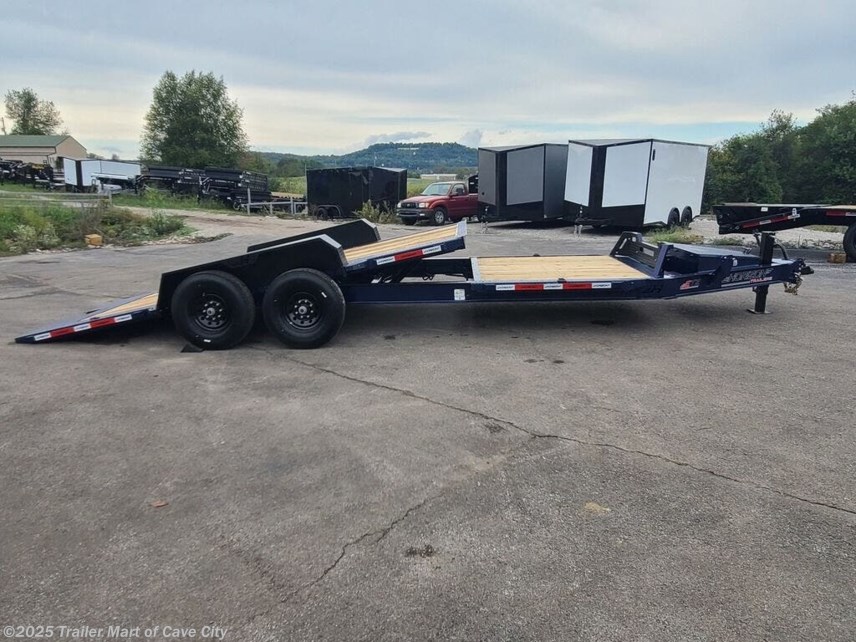

New 2025 Horizon Trailers ETZ 22' (16'+6') Split Tilt Trailer

TRAILER SPECS/DIMENSIONS - BUMPER PULL:
LENGTH: 22'
DECK WIDTH: 83"
DECK HEIGHT: 22"
WEIGHT RATINGS
GAWR: 7,000 lbs
GVWR: 15,260lbs
ESTIMATED DRY WEIGHT: 4230lbs
ESTIMATED PAYLOAD: 11,030lbs
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
COLORS: Military Green, Desert Tan, Flame Orange, Midnight Black, Spectra Yellow, Blue Horizon, Lime Green, Ash Grey, True Red, Pearl White

WARRANTY:
AXLE WARRANTY: 11 Year Lippert Torsion Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty

TONGUE TYPE: 8" I-Beam (13 lbs/ft)
LENGTH: 60"
SPARE: Weld On Spare Tire Mount
STANDARD COUPLER: Adjustable Demco EZ Latch 2-5/16" BP Coupler (21,000 lbs)
FRONT JACK: 1 Side Wind Spring Loaded Drop Jack Leg (12,000 lbs)
TOOLBOX BP: Mega Lockable Toolbox Bp

SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)

CHASSIS/FRAME:
MAIN FRAME: 8" I-Beam (13 lbs/ft)

DECK/BED:
DECK WIDTH: 83"
WIDTH BETWEEN FENDERS: 83"
DECK HEIGHT: 22"
FLOORING: Pine Lumber Floor
FRAME: 2" x 5" x 7ga. Tubing Bed Frame (Tilt)
CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
TILT: 16' Tilt Deck
TILT ANGLE: 13°
DECK FRAME: Fabricated 1/4" Diamond Plate
D-RINGS: 2 - D-Rings In Between Fenders
FRONT SHIELD: Front 2' High Steel Rock Guard
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")
FENDERS: 14ga. Diamond Plate Steel Fenders

TILT SYSTEM/HYDRAULICS:
SYSTEM: Gravity Up / Down
CYLINDER: 1 - 3" x 16" Cylinder
TANK: Large Reservoir
VALVE: 3 Way Valve Control

RUNNING GEAR/TIRES:
TYPE: Radial Tires
SIZE: ST235/80R16
PLY: 10
RATING: 3,520 lbs
RIMS: 16" Black Mod Wheels

SUSPENSION:
AXLE TYPE: 2 - 7k Lippert Electric Brake EZ Lube Torsion Axles
BOLT PATTERN: 8 On 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: Torsion
AXLE WARRANTY: 11 Year Lippert Torsion Axle Warranty

ELECTRICAL AND LIGHTING
BATTERY AND CHARGING:
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights

SAFETY:
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape
