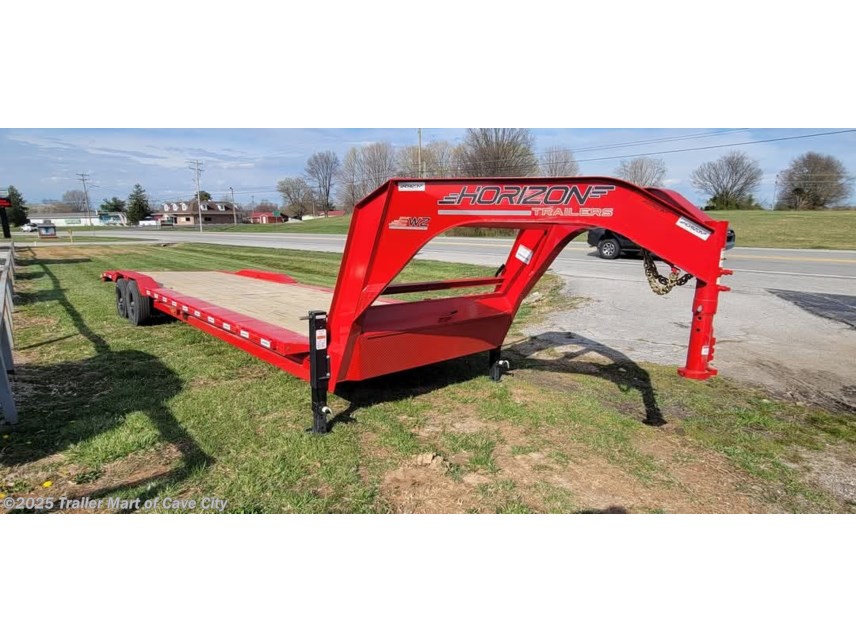

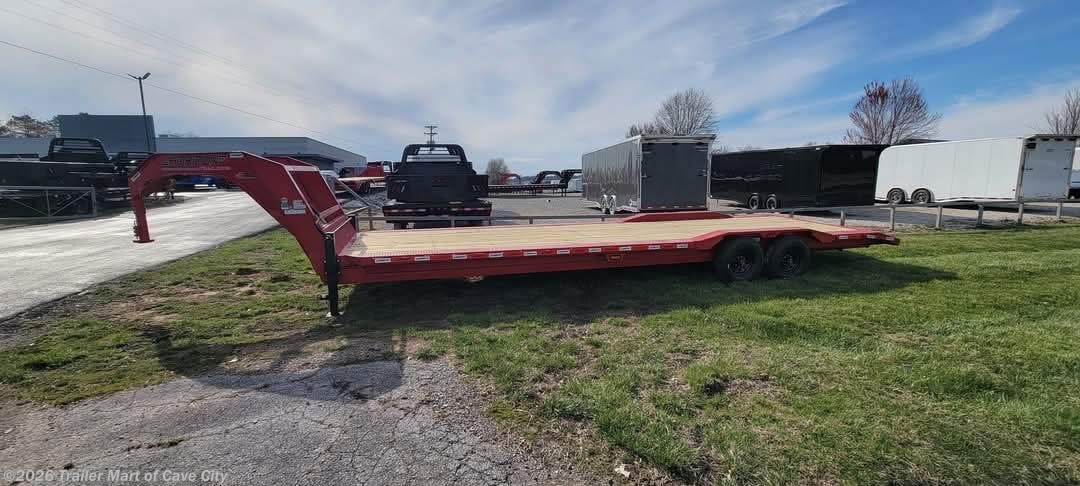

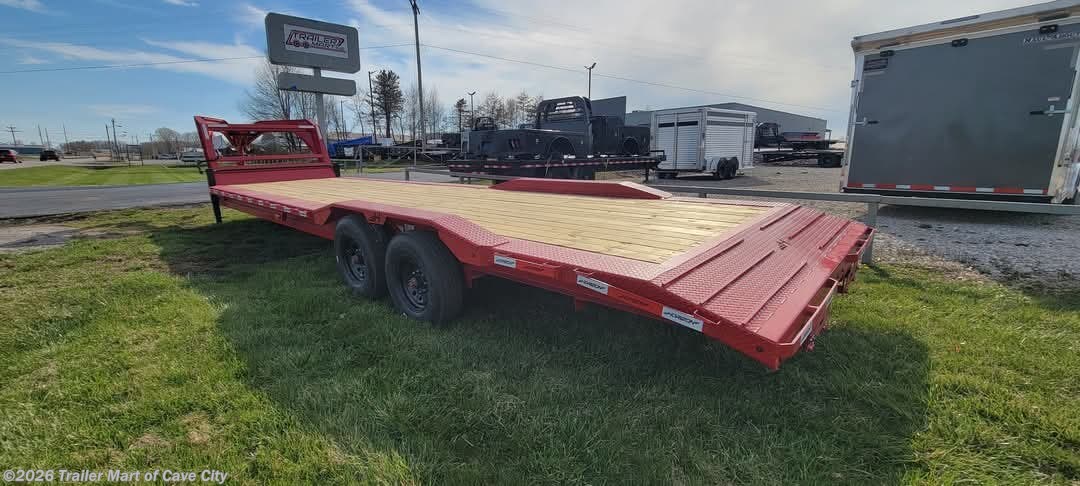

New 2025 Horizon Trailers EWZ 30'GN Drive Over Trailer
INVENTORY HIGHLIGHTS:
Sale!
Estimated Payments
INTEREST RATE
11.99%
CASH/TRADE
$1,430
TERM
5 Years
Est. Monthly Payment
$286
TRAILER SPECS
DIMENSIONS
LENGTH: 30’
DECK WIDTH: 102”
WEIGHT RATING
GAWR: 8,000 LBS
GVWR: 17,900
FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
WARRANTY
AXLE WARRANTY: 6 YEAR SPRING AXLE WARRANTY
TRAILER WARRANTY: 3 YEAR FRAME / 1 YEAR PARTS WARRANTY

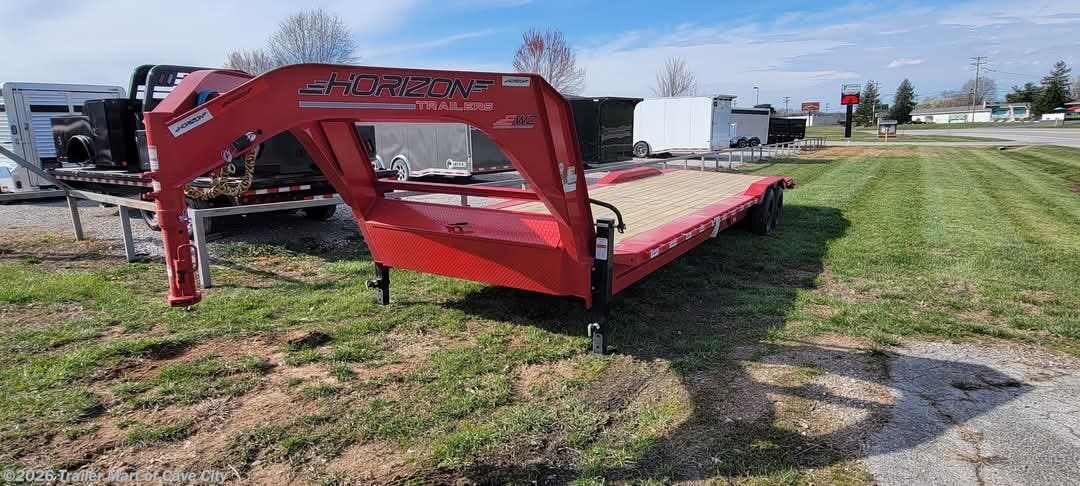

TONGUE
TOUNGE TYPE: 10" ENGINEERED I-BEAM
LENGTH: 98" (FROM BEHIND RISER)
HEIGHT: 70" (FROM UNDERNEATH NECK]
SPARE: WELD ON SPARE TIRE MOUNT
STORAGE BEHIND NECK: STORAGE BOX / WINCH READY
COUPLER
STANDARD COUPLER: ADJUSTABLE 2-5/16" GN COUPLER [30,000 LBS]
JACKS
FRONT JACKS: 2 SIDE WIND SPRING LOADED DROP JACK LEGS (12,000 LBS)
TOOLBOX: MEGA LOCKABLE TOOLBOX
SAFETY
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK [2 EACH]
CHASSIS
FRAME
MAIN FRAME: 10" I-BEAM [15 LBS/FT] W/ 4" X 4" ANGLE IRON BRIDGE
TORQUE TUBE30' AND UP ONLY: 4,1/2" TUBE
DECK
BED

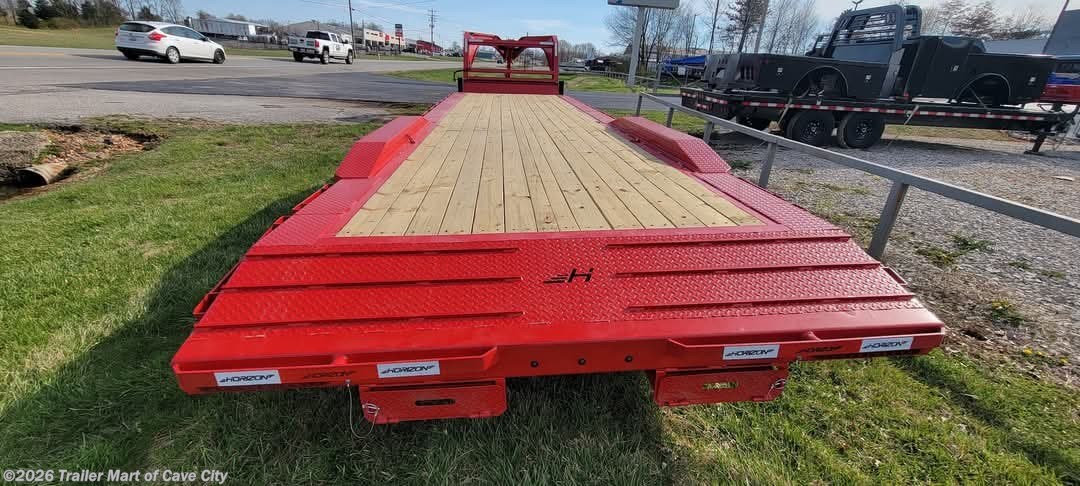

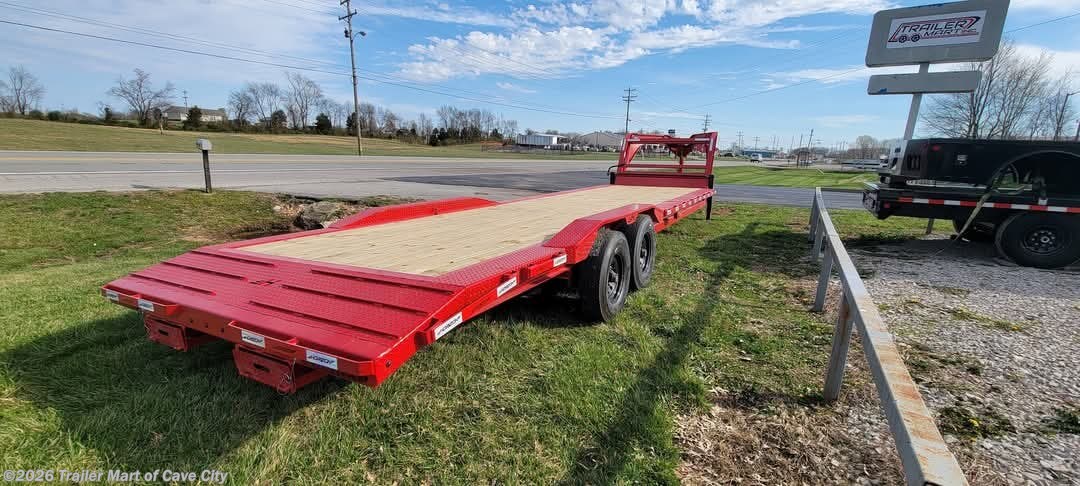

REAR OF DECK: 2' DOVETAIL
DECK FRAME: 3/16" DIAMOND PLATE

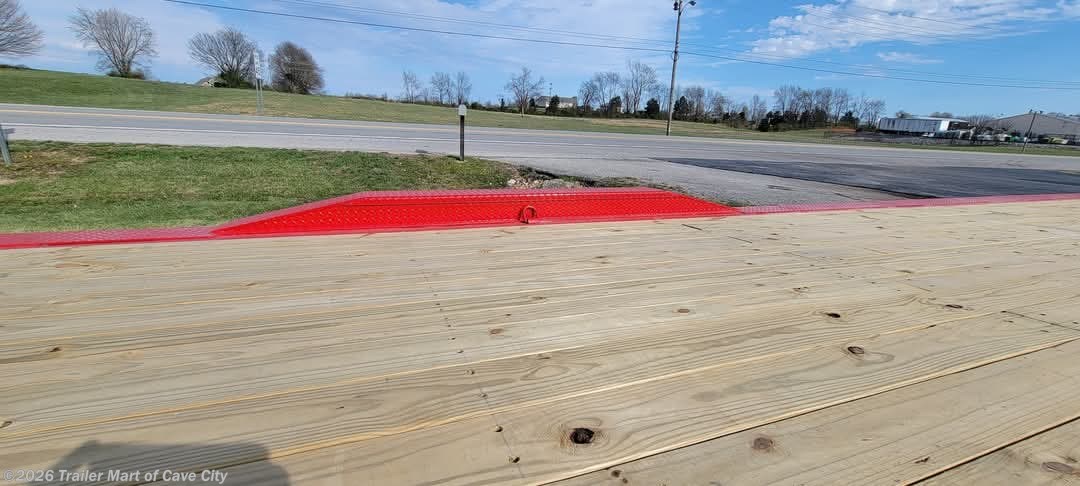

FLOORING: PINE LUMBER FLOOR
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT] 16" SPACING
DECK HEIGHT: 30”
DECK WIDTH: 102”
WIDTH BETWEEN FENDERS: 83”
D-RINGS: 2 D-RINGS IN BETWEEN FENDERS
SIDES
RUB RAIL: 2" X 3/8" RUB RAIL
STAKE POCKETS: 1,5/8" X 3,5/8" (ID] STAKE POCKETS (SPACED AT 24"]
SPOOLS: 2" X 10GA. PIPE SPOOLS (SPACED AT 24"]
FENDERS: 3/16" DIAMOND PLATE DRIVE OVER FENDERS
REAR
RAMPS: RAMP POCKETS W/ 5' 6" LONG HEAVY-DUTY SLIDE IN 4" CHANNEL RAMPS (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)

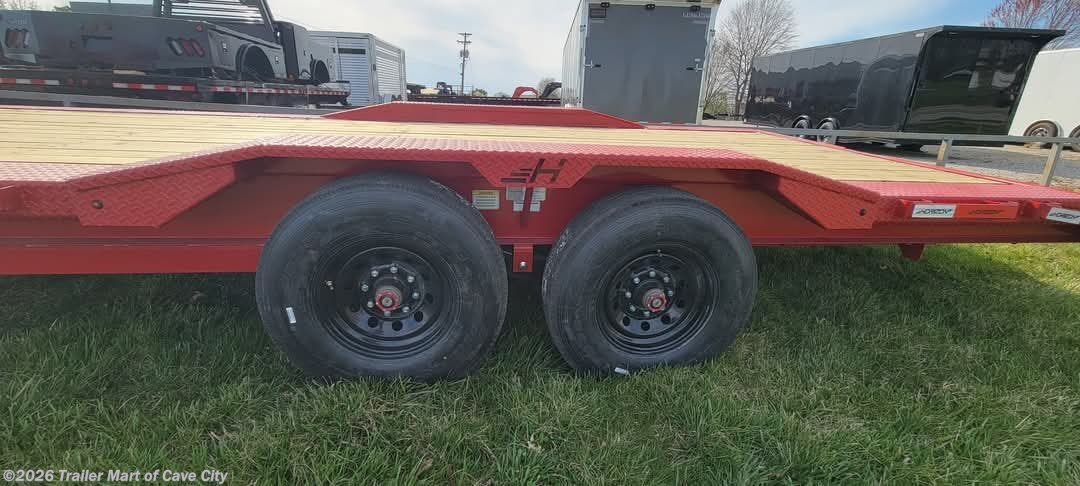

RUNNING GEAR
TIRES
TYPE: RADIAL TIRES
SIZE: ST235/85R16
PLY: 14
RATING: 4,400 LBS
RIMS: 16" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 8K ELECTRIC BRAKE AUTO ADJUST EZ LUBE SPRING AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: SPRING
AXLE WARRANTY: 6 YEAR LIPPERT SPRING AXLE WARRANTY
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
BREAKAWAY SYSTEM: 2382 BRIGHTWAY GROUP ELECTRIC BREAKAWAY KIT
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV]
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
Condition:
New
Exterior Color:
Red
GVWR:
17,900 lb
Dry Weight:
4,226 lb
Payload Capacity:
13,674 lb
Hitch Type:
Gooseneck
Stock #:
08745
VIN:
3H7GU3028SR008745
Location:
Cave City, KY
Year:
2025
Brand:
Floorplan:
EWZ 30'GN Drive Over Trailer
Type:
Length:
30' 0"
Width:
8' 6"
CONTACT US
SIMILAR UNITS FOR SALE
$19,395.00
$15,495.00
$21,195.00
$16,895.00
$18,695.00
$14,895.00
$18,695.00
$14,895.00
DEALER INFORMATION
Advertised pricing excludes applicable taxes title and licensing, dealer processing fee, shipping, reconditioning and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed are available on pre-owned models. Contact dealer for details.
TRAILER MART OF CAVE CITY, INC IS NOT RESPONSIBLE FOR ANY OMITTED LIEN HOLDER(S) OR CUSTOMER NAMES FROM TITLES. IT IS THE RESPONSIBILITY OF THE CUSTOMER AND/OR LIEN HOLDER TO CONTACT TRAILER MART OF CAVE CITY, INC AT THE TIME OF PURCHASE IF A LIEN HOLDER IS TO BE LISTED ON THE TITLE AND IF THE TITLE IS TO BE MAILED TO THE LIEN HOLDER OR GIVEN DIRECTLY TO THE CUSTOMER. TITLES WILL BE MAILED TO THE LIEN HOLDER OR CUSTOMER AFTER THE TRANSACTION IS COMPLETE AND FUNDED. AFTER RECEIVING YOUR TITLE HAS BEEN MAILED IT IS YOUR RESPONSIBILITY TO GET A DUPLICATE TITLE IF YOUR TITLE IS LOST (TRAILER MART OF CAVE CITY, INC DOES NOT PROVIDE DUPLICATE OR LOST TITLES.)
It is the sole responsibility of the customer to verify the condition and existence of equipment on any listed unit. Trailer Mart of Cave City, Inc is not responsible for discrepancies, misprints, omissions, or changes to listed equipment related to or described on advertised units. All Sales Are Final with no cooling off period in accordance with the laws in the State of Kentucky. Pricing subject to change without notice.

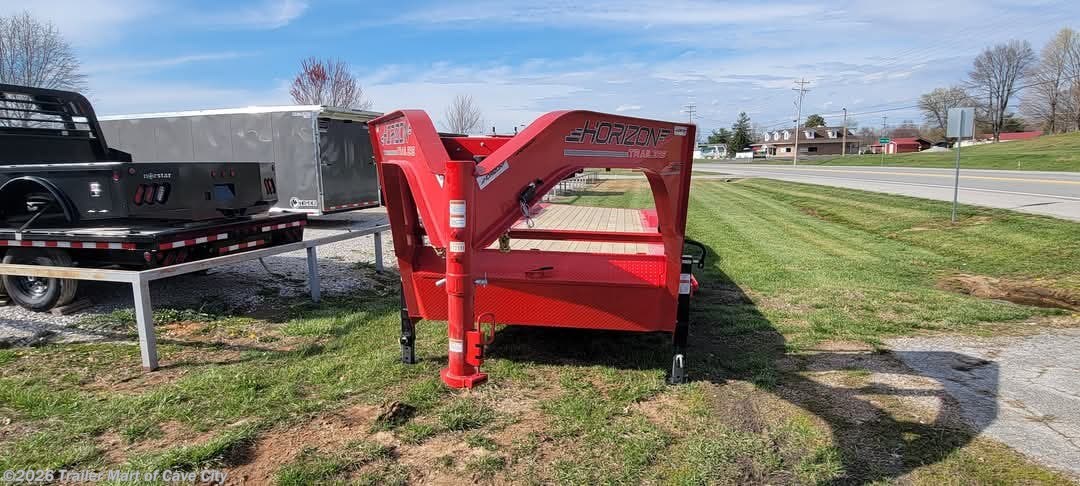

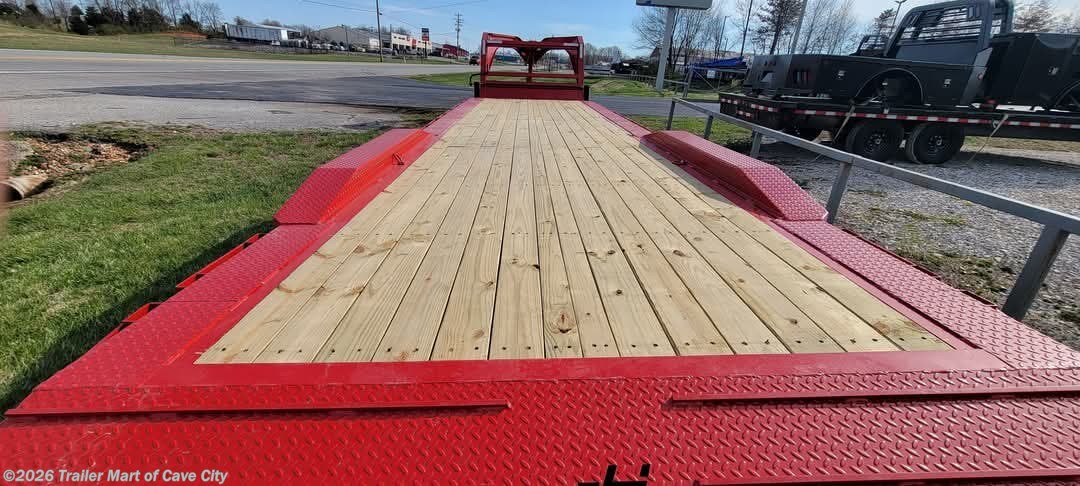

2025 Horizon Trailers EWZ 30'GN Drive Over Trailer Gallery
