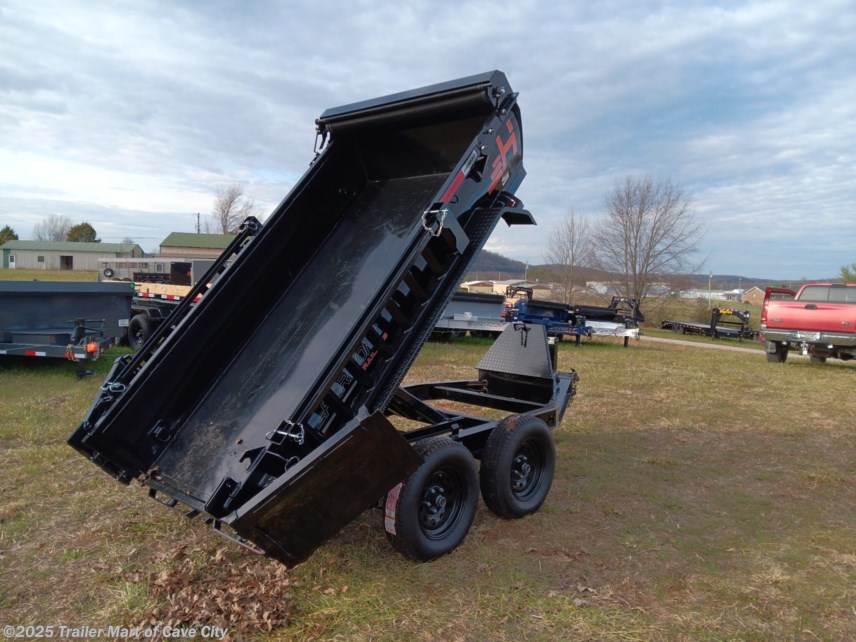

New 2025 Horizon Trailers HZ5BP 5'x10' 3.5k Dump Trailer

TRAILER SPECS
DIMENSIONS - BUMPER PULL

LENGTHS: 10'
SIDE HEIGHT: 18"
BED WIDTH: 60"
BED HEIGHT: 24"

WEIGHT RATINGS
GAWR: 3,500 lbs
10' Dump 2 Axles GVWR: 7,630 lbs
ESTIMATE DRY WEIGHT: 2,320 lbs
ESTIMATE PAYLOAD: 5,310 lbs
ESTIMATE TONGUE WEIGHT: 300 lbs

FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
COLORS: Black
STYLE: 2 Tone Colors Available, Chassis / Dump

WARRANTY
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty

TONGUE
TONGUE
TYPE: 6" I-Beam (8.5 lbs/ft)
LENGTH: 50"

COUPLER
STANDARD COUPLER: Adjustable 2-5/16" BP Coupler (15,000 lbs)

JACKS
FRONT JACK: 1 Side Wind Drop Jack Leg (7000 lbs)

TOOLBOX
TOOLBOX: Lockable Toolbox Bp (Houses Battery and Pump)

SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 1/4" Grade 70 Safety Chain w/Clevis Hook (2 each)

CHASSIS
FRAME
MAIN FRAME: 6" I-Beam (8.5 lbs/ft)
DUMP
BED
BED WIDTH: 60"
BED HEIGHT: 24"
FLOORING: 10ga. Floor
FRAME: 3" x 3" x 3/16" Angle Iron (3.70 lbs/ft)
CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
D-RINGS: 4 D Rings Welded Inside Box
DUMP ANGLE 8': 44°
DUMP ANGLE 10': 42°

REAR
GATE: 2 Way Door

SIDES
HEIGHT: 18"
THICKNESS: 12ga.
TYPE: Rounded Steel
TOP RAIL: 2" x 3" x 11ga. Tubing
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets
HOOKS: 3/8" Round "L" Hooks
FENDERS: 14ga Diamond Plate Steel Fenders

LIFT SYSTEM
HYDRAULICS
SYSTEM: Hydraulic - Power Up / Gravity Down
PUMP: KTI 12V Hydraulic Pump
CONTROLLER: 14' Control Cable
DUMP LIFT
CYLINDER: 5" x 10" Single Push Cylinder
HOIST CAPACITY: 10,000 lbs

RUNNING GEAR
TIRES
TYPE: Radial Tires
SIZE: ST205/75R15
PLY: 10
RATING: 2,830 lbs
RIMS: 15" Black Mod Wheels

SUSPENSION
AXLE TYPE: 3.5k Lippert Electric Brake EZ Lube Spring Axles
BOLT PATTERN: 5 On 4.75"
AXLE COUNT: (1 Axle 8 Ft Dump) (2 Axles 10 Ft Dump)
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty

ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
BATTERY: 1 - Interstate 27 Deep Cycle Battery
CHARGING SYSTEM: 110V Integrated Trickle Charger
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness

LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights

SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape

ESTIMATE WEIGHT RATINGS BY TRAILER
AXLES 3.5k
GAWR: 3,500 lbs
GVWR: 7,630 lbs
DRY WEIGHT: 2,320 lbs
PAYLOAD: 5,310 lbs
TONGUE WEIGHT: 340 lbs

Upgrades:

Scissor Hoist
