New 2025 Horizon Trailers HZ7 7'x14' 7k Gooseneck Dump Trailer

INVENTORY HIGHLIGHTS:

Sale!

Price $20,595.00
Sale Price $15,795.00

Estimated Payments


INTEREST RATE

11.99%

CASH/TRADE

$1,580

TERM

5 Years

EST. PAYMENT

$316

Print Unit Info

TRAILER SPECS

DIMENSIONS - GOOSENECK



LENGTH:                    14’

SIDE HEIGHT:            4’

BED WIDTH:               83"

BED HEIGHT:              28"



WEIGHT RATINGS

GAWR:                7,000 lbs

GVWR GN:       15,680 lbs



FINISH

PAINT TYPE:    Powdercoat

PREP:  Steel Grit Blasted

COLORS:         Gray/Blue

STYLE:2 Tone Colors Available, Chassis / Dump



WARRANTY

AXLE WARRANTY:       6 Year Lippert Spring Axle Warranty

TRAILER WARRANTY:Three (3) Year Frame/One (1) Year Parts Warranty



TONGUE GN

TYPE:10" Engineered Steel I-Beam

LENGTH:94" Long (From Behind Riser)

HEIGHT:70" High (From Underneath Neck)

SPARE: Weld On Spare Tire Mount



COUPLER

STANDARD COUPLER GN: Adjustable 2-5/16" GN Coupler (30,000 lbs)



JACKS

FRONT JACKS GN:      2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)



TOOLBOX

TOOLBOX GN:               Mega Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)



SAFETY SYSTEM

BREAKAWAY SYSTEM:2382 Brightway Group Electric Breakaway Kit

SAFETY CHAINS:3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)



CHASSIS

FRAMEMAIN FRAME: 8" I-Beam (13 lbs/ft)

STEPS: Side Step On Both Sides



BED

BED WIDTH:               83"

BED HEIGHT:              28"

FLOORING:     7ga. Floor

FRAME:              5" x 5" x 5/16" Angle Iron (10.3 lbs/ft)

CROSSMEMBERS:     3" Channel (3.50 lbs/ft) 16" Spacing

D-RINGS:          4 D Rings Welded Inside Box

DUMP ANGLE:               39° - 49°



REAR

GATE: 3 Way Door - Spreader Gate

RAMPS: Ramp Pockets w/2 - 6' 4" Heavy Duty Slide In 4" Channel Ramps (5,000 lbs each)

REAR STANDS: Pair Of Rear Stabilizer Stands



SIDES

HEIGHT:             4’

THICKNESS:   10ga.

TYPE:   Rounded Steel

TOP RAIL:          3" x 5" x 11ga. Tubing

STAKE POCKETS:         1,5/8" x 3,5/8" (ID) Stake Pockets

HOOKS:             3/8" Round "L" Hooks

FENDERS:        12ga. Diamond Plate Steel Fenders



SAFETY

TARP: Manual Tarp Kit



LIFT SYSTEM

HYDRAULICS

SYSTEM:            Hydraulic - Power Up / Gravity Down

PUMP:KTI 12V Hydraulic Pump

CONTROLLER:             14' Control Cable

12'

CYLINDER:      5" x 15" Single Push Cylinder

HOIST CAPACITY:        15,000 lbs

14', 16' DUMP LIFT

CYLINDER:      6" x 21" Single Push Cylinder

HOIST CAPACITY:        20,000 lbs

RUNNING GEAR

TIRES

TYPE:   Radial Tires

SIZE:    ST235/80R16

PLY:       14

RATING:             3,520 lbs

RIMS:  16" Black Mod Wheels



SUSPENSION

AXLE TYPE:      2 - 7k Lippert Electric Brake EZ Lube Spring Axles

BOLT PATTERN:            8 On 6.5"

AXLE COUNT:2

SUSPENSION TYPE:  Spring

AXLE WARRANTY:       6 Year Lippert Spring Axle Warranty



BATTERY AND CHARGING

BATTERY:           1 - Interstate 27 Deep Cycle Battery

CHARGING SYSTEM:110V Integrated Trickle Charger

WIRING HARNESS:    All-Weather Wiring Harness (7-Way RV)

FRAME WIRING:           Double Insulated Wiring Harness



LIGHTING

LIGHTS:              DOT Approved Tecniq LED Lights



SAFETY

REFLECTIVE TAPE:      3M Dot Compliant Reflective Tape

Condition:

New

Exterior Color:

Gray/Blue

GVWR:

15,680 lb

Dry Weight:

6,460 lb

Payload Capacity:

9,220 lb

Hitch Type:

Gooseneck

Stock #:

03200

VIN:

3H7GD1426RR003200

Location:

Cave City, KY

Year:

2025

Model:

HZ7

Floorplan:

7'x14' 7k Gooseneck Dump Trailer

Length:

14' 0"

Width:

6' 9"

Height:

4' 0"

INTEREST RATE

11.99%

CASH/TRADE

$1,580

TERM

5 Years

EST. PAYMENT

$316

CONTACT US


Please enter a First Name.
Please enter a Last Name.
Please enter a valid email.
Please enter a valid Phone number: 123-456-7890
Please enter a message in the Comments.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

SIMILAR UNITS FOR SALE


DEALER INFORMATION


Trailer Mart of Cave City

502 East Happy Valley Street Cave City, KY 42127

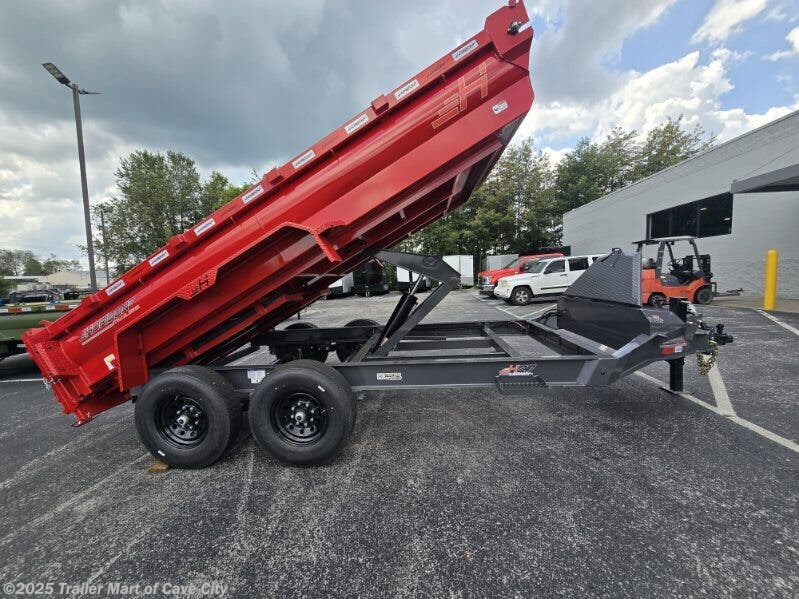

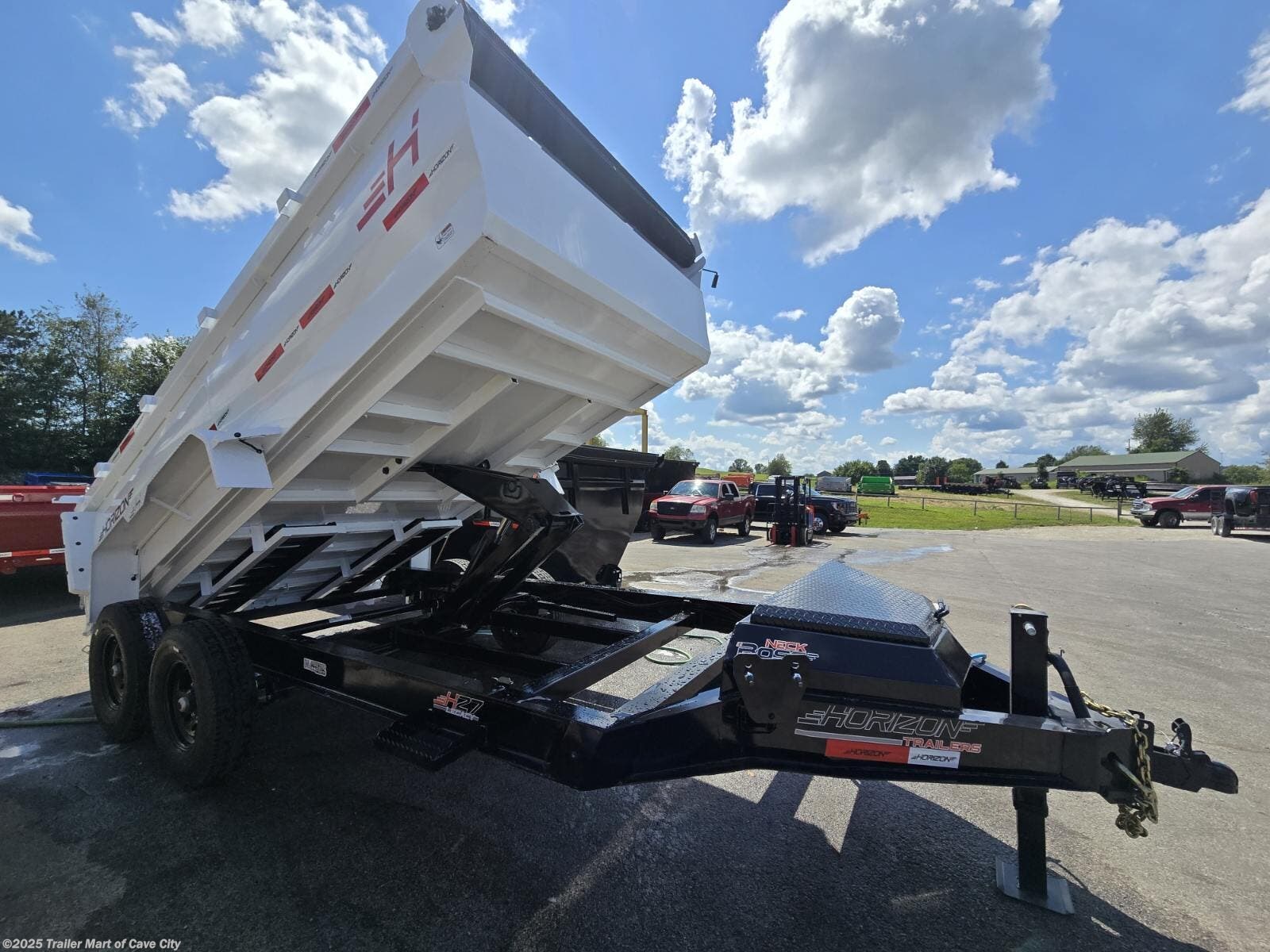

2025 Horizon Trailers HZ7 7'x14' 7k Gooseneck Dump Trailer Gallery
