Estimated Payments
INTEREST RATE
11.99%
CASH/TRADE
$1,580
TERM
5 Years
Est. Monthly Payment
$316
TRAILER SPECS
LENGTH: 24'
DECK WIDTH: 83"
DECK HEIGHT: 22"
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
WARRANTY:
AXLE WARRANTY: 10 YEAR TORSION AXLE WARRANTY
TRAILER WARRANTY: THREE (3) YEAR FRAME/ONE (1) YEAR PARTS WARRANTY
TONGUE TYPE: 8" I-BEAM (13 LBS/FT)
LENGTH: 60"
HEIGHT: 70” HIGH (FROM UNDERNEATH NECK)
SPARE: WELD ON SPARE TIRE MOUNT

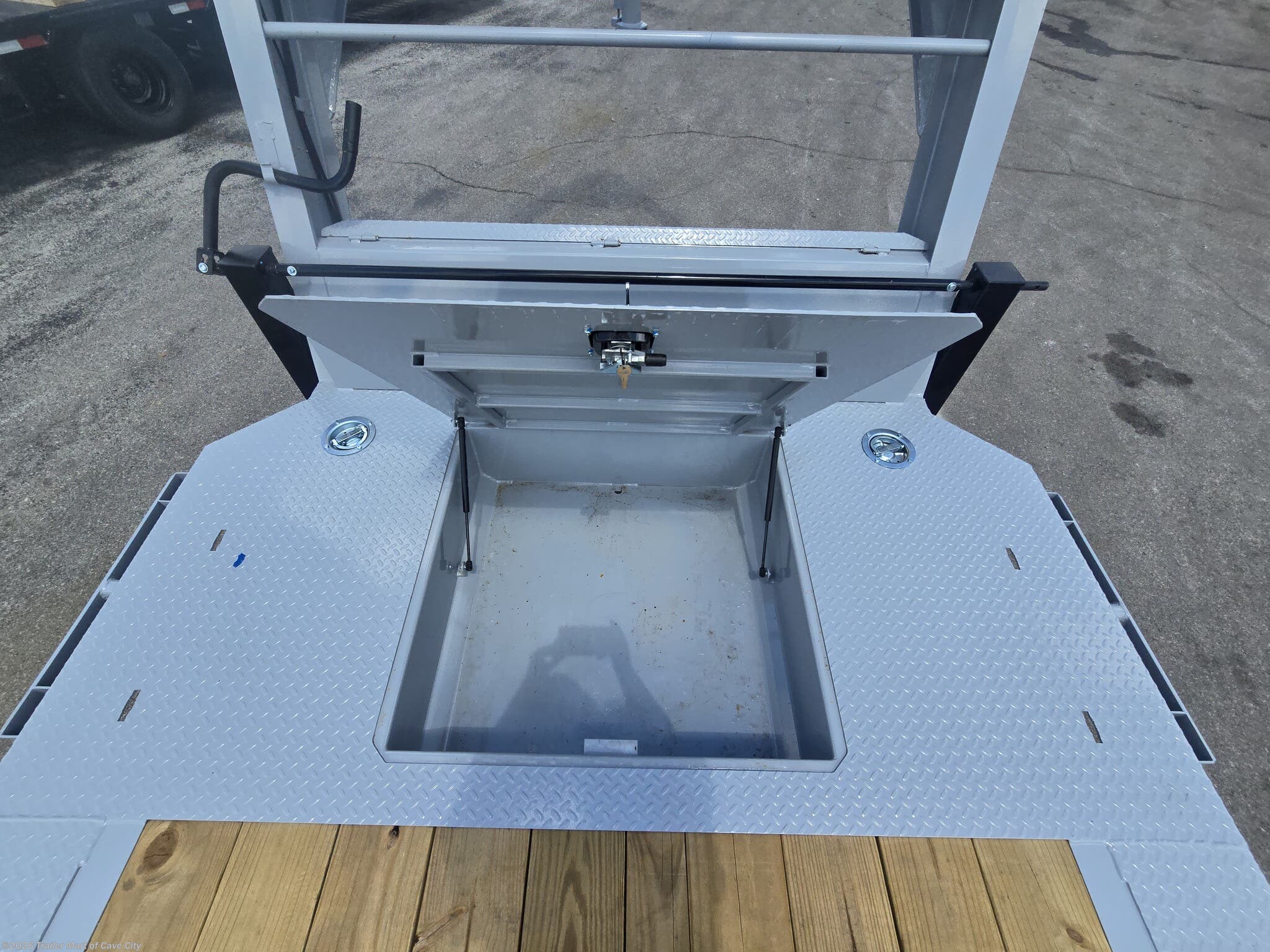

STORAGE BEHIND NECK: STORAGE BOX/ WINCH READY
STANDARD COUPLER: ADJUSTABLE AUTO LATCH 2-5/16" BP COUPLER (17,000 LBS)
FRONT JACK: 1 SIDE WIND SPRING LOADED DROP JACK LEG (12,000 LBS)

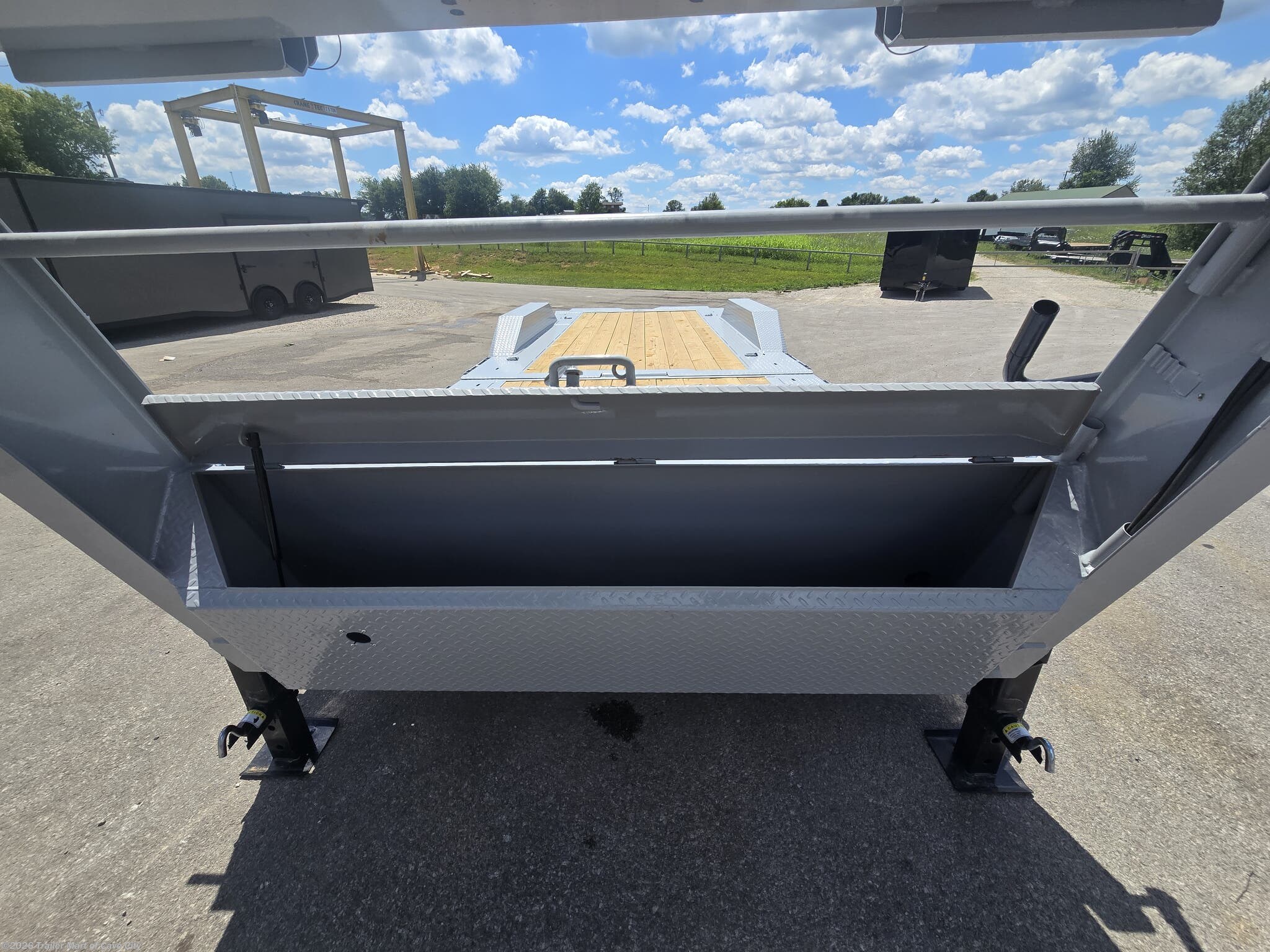

TOOLBOX BP: MEGA LOCKABLE TOOLBOX BP
SAFETY CHAINS: 3/8” GRADE 70 SAFETY CHAIN W/ CLEVIS HOOK (2 EACH)
CHASSIS/FRAME:
MAIN FRAME: 8" I-BEAM (13 LBS/FT)
DECK
BED
FLOORING: PINE LUMBER FLOOR
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING
DECK HEIGHT: 22”
DECK WIDTH: 83"
WIDTH BETWEEN FENDERS: 83"
WELD ON D-RINGS: (2) D-RINGS IN BETWEEN FENDERS
BOLT ON SWIVEL D- RINGS: (2) – FLUSH MOUNT GALVANIZED SWIVEL D-RINGS FRONT OF TRAILER
TIE DOWN SLOTS: SLOTS FOR LATCH ON TIE DOWN FITTINGS FRONT END OF DECK

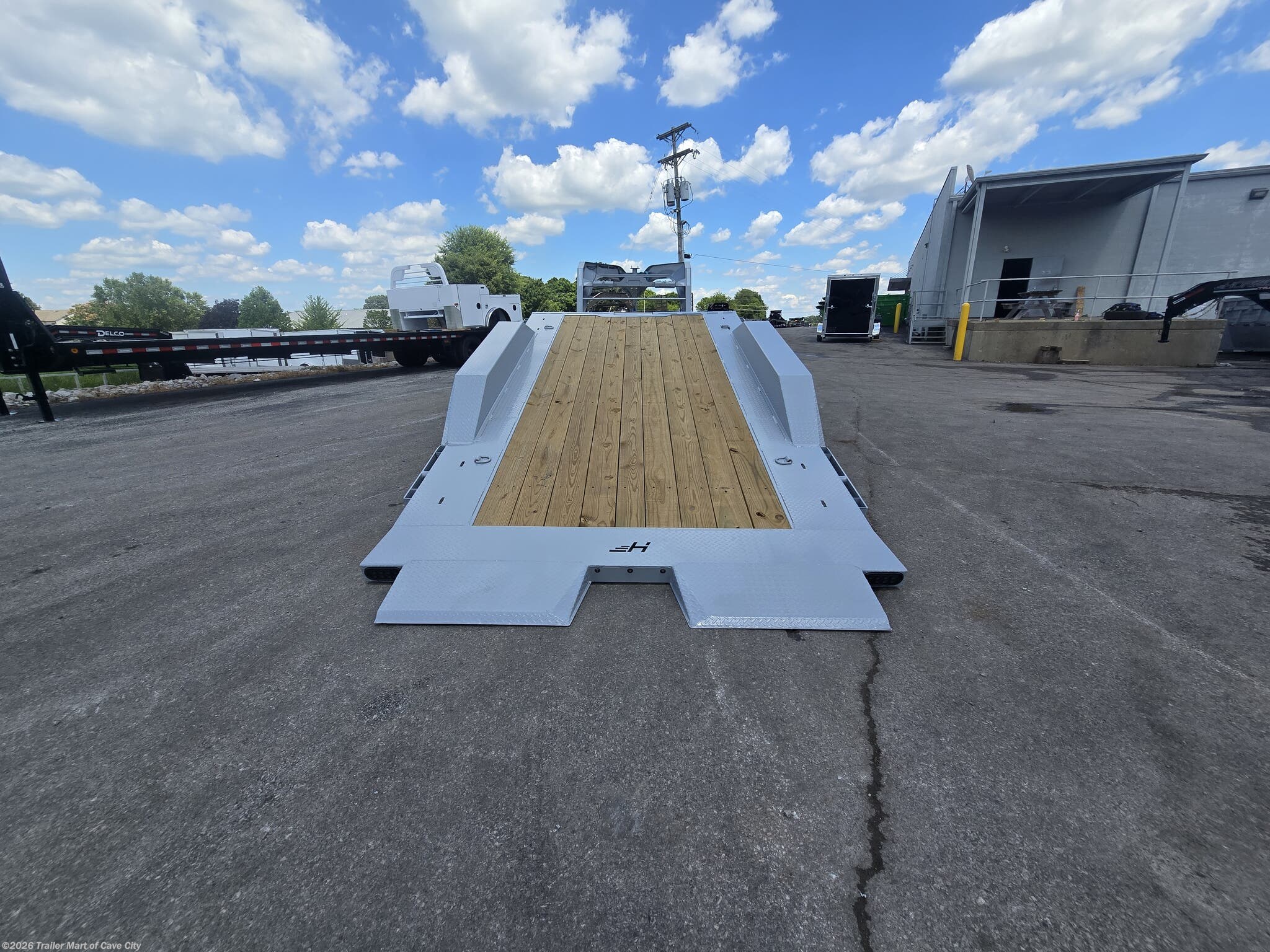

TILT DECK LENGTH: 16’
TILT DECK FRAME: 2” X 5” X 7GA. TUBING BED FRAME
TILT ANGLE: 13°
SIDES
RUB RAIL: 2” X 3/8” RUB RAIL
STAKE POCKETS: 1,5/8” X 3,5/8” (ID) STAKE POCKETS (SPACED AT 24”)
SPOOLS: 2” X 10GA. PIPE SPOOLS (SPACED AT 24”)
FENDERS: 12GA. REMOVABLE DIAMOND PLATE STEEL FENDERS
TILT SYSTEM
HYDRAULICS
SYSTEM: GRAVITY UP/DOWN
CYLINDER: 1 – 3” X 16” CYLINDER
TANK: LARGE RESERVOIR
VALVE: 3 WAY VALVE CONTROL

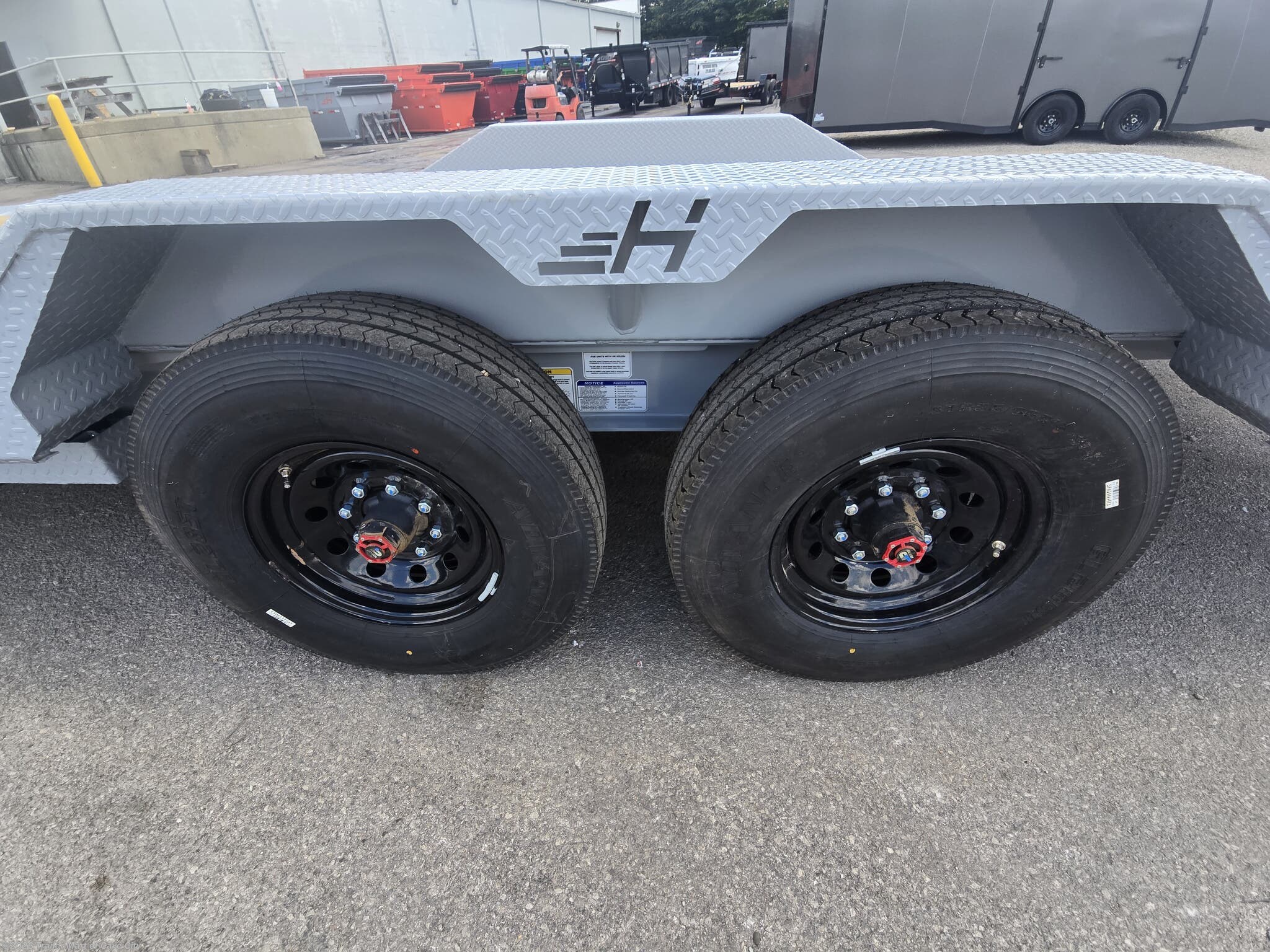

RUNNING GEAR
TIRES
TYPE: RADIAL TIRES
SIZE: ST235/80R16
PLY: 14
RATING: 3,520 LBS
RIMS: 16" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 2 - 7K ELECTRIC BRAKE AUTO ADJUST OIL BATH TORSION AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: TORSION
AXLE WARRANTY: 10 YEAR TORSION AXLE WARRANTY
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
BREAKAWAY SYSTEM: 2382 BRIGHTWAY GROUP ELECTRIC BREAKAWAY KIT
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
UPGRADES:
2 - 8K ELECTRIC BRAKE AUTO ADJUST OIL BATH TORSION AXLES
102” WIDE W/ DRIVE OVER FENDERS
IN FLOOR STORAGE
(4) – D-RINGS
Condition:
New
Exterior Color:
Cloud Gray
GVWR:
17,900 lb
Dry Weight:
5,470 lb
Payload Capacity:
12,430 lb
Hitch Type:
Gooseneck
Stock #:
17562
VIN:
3H7GT2420TR017562
Location:
Cave City, KY
Year:
2026
Brand:
Model:
Floorplan:

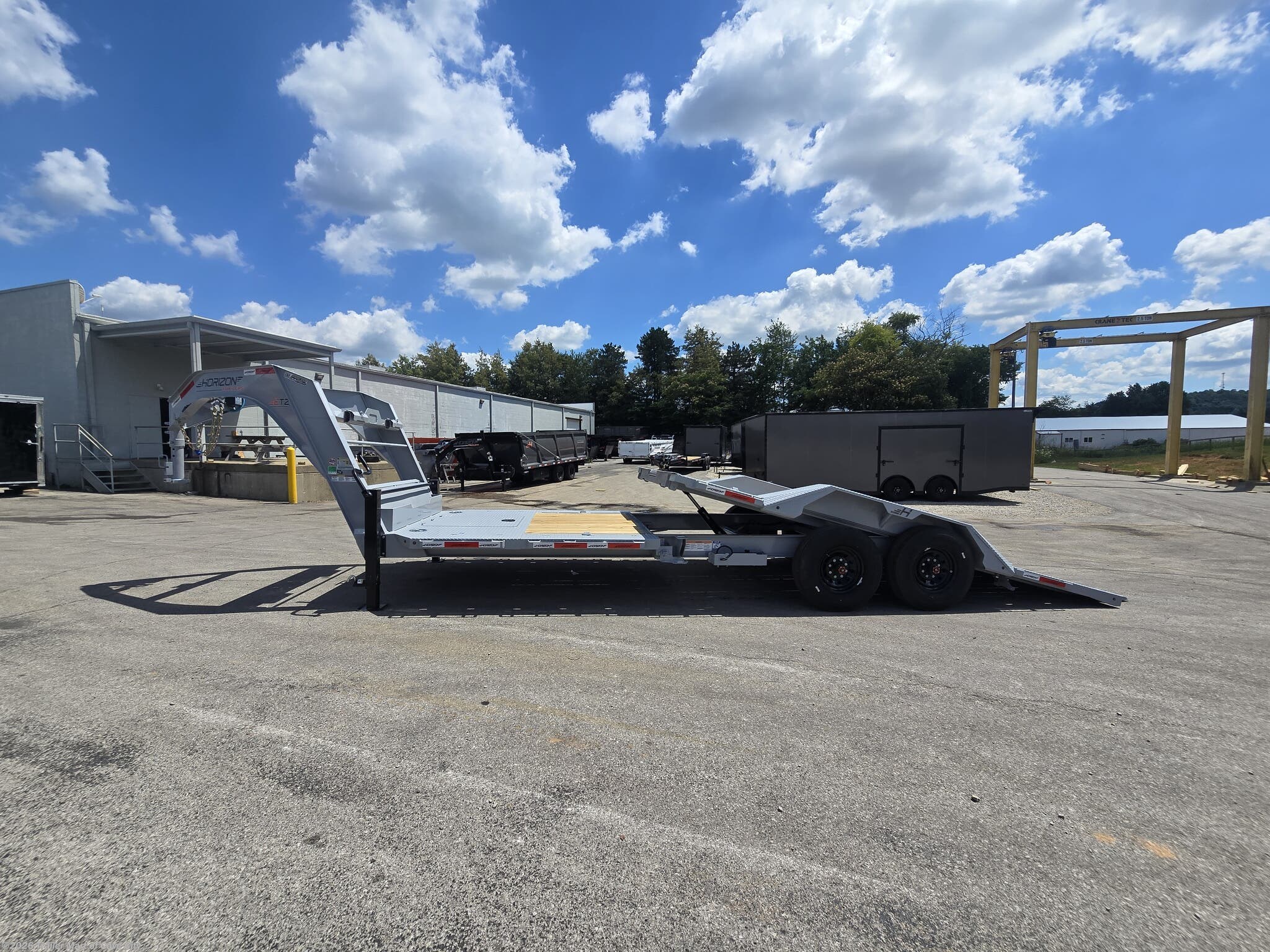

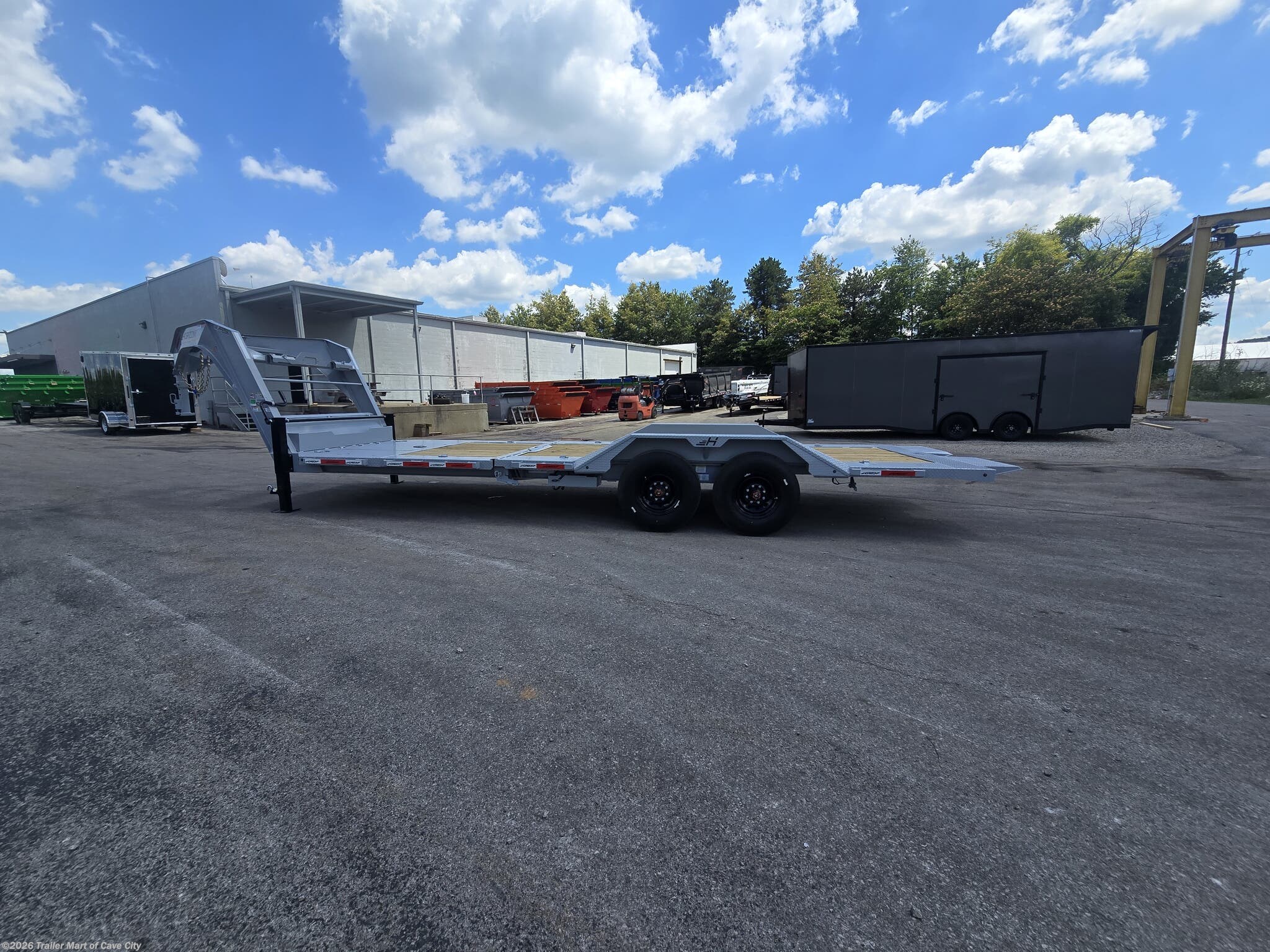

24' (16'+8') Gooseneck Split Tilt Trailer
Type:
Length:
24' 0"
Width:
8' 6"
CONTACT US
SIMILAR UNITS FOR SALE
$15,795.00
$12,595.00
$13,995.00
$11,195.00
$16,295.00
$12,995.00
$17,395.00
$13,895.00
$15,295.00
$12,195.00
$17,895.00
$14,295.00
$20,895.00
$16,695.00
$16,495.00
$13,195.00
DEALER INFORMATION
Advertised pricing excludes applicable taxes title and licensing, dealer processing fee, shipping, reconditioning and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed are available on pre-owned models. Contact dealer for details.
TRAILER MART OF CAVE CITY, INC IS NOT RESPONSIBLE FOR ANY OMITTED LIEN HOLDER(S) OR CUSTOMER NAMES FROM TITLES. IT IS THE RESPONSIBILITY OF THE CUSTOMER AND/OR LIEN HOLDER TO CONTACT TRAILER MART OF CAVE CITY, INC AT THE TIME OF PURCHASE IF A LIEN HOLDER IS TO BE LISTED ON THE TITLE AND IF THE TITLE IS TO BE MAILED TO THE LIEN HOLDER OR GIVEN DIRECTLY TO THE CUSTOMER. TITLES WILL BE MAILED TO THE LIEN HOLDER OR CUSTOMER AFTER THE TRANSACTION IS COMPLETE AND FUNDED. AFTER RECEIVING YOUR TITLE HAS BEEN MAILED IT IS YOUR RESPONSIBILITY TO GET A DUPLICATE TITLE IF YOUR TITLE IS LOST (TRAILER MART OF CAVE CITY, INC DOES NOT PROVIDE DUPLICATE OR LOST TITLES.)
It is the sole responsibility of the customer to verify the condition and existence of equipment on any listed unit. Trailer Mart of Cave City, Inc is not responsible for discrepancies, misprints, omissions, or changes to listed equipment related to or described on advertised units. All Sales Are Final with no cooling off period in accordance with the laws in the State of Kentucky. Pricing subject to change without notice.

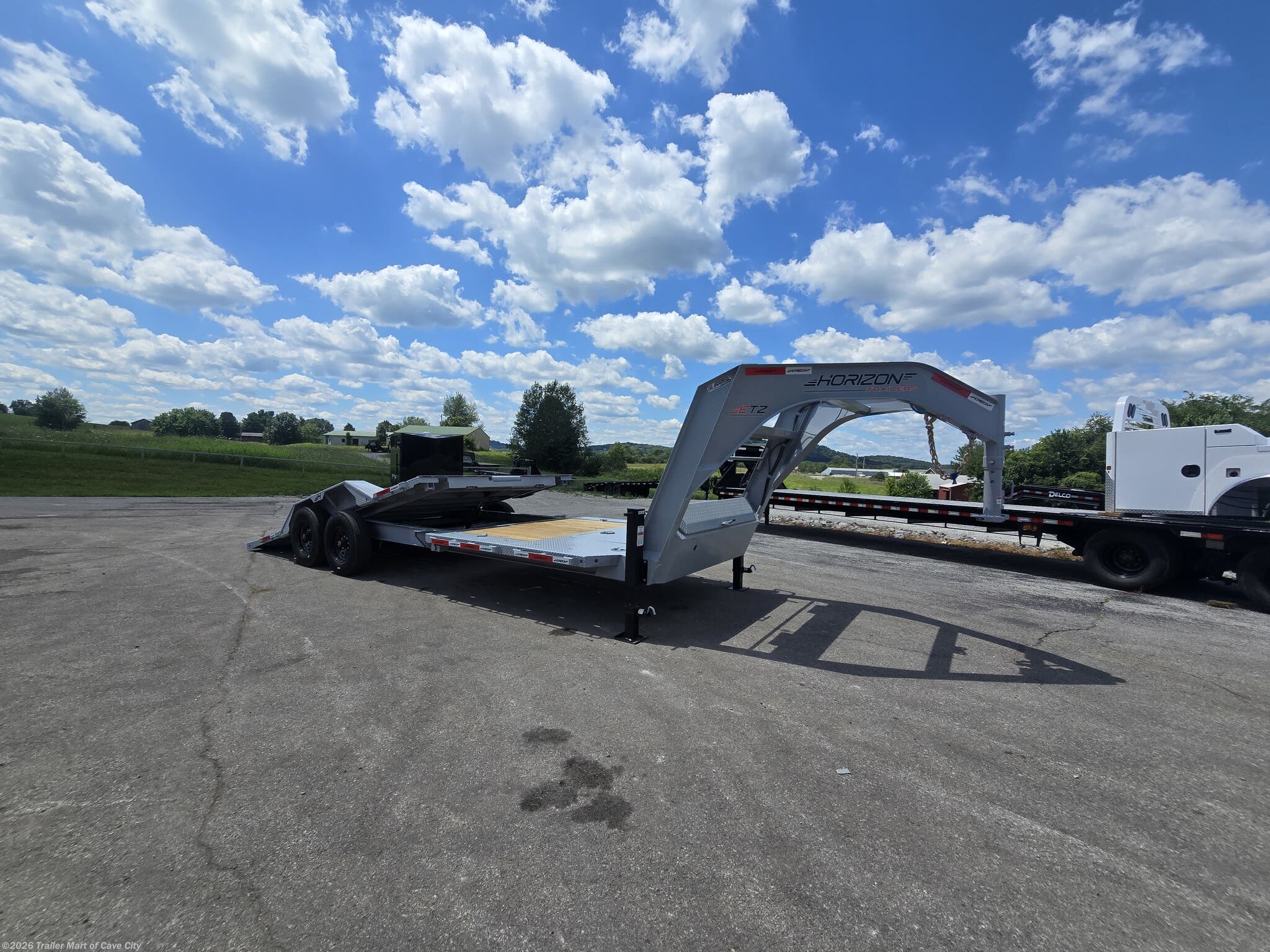

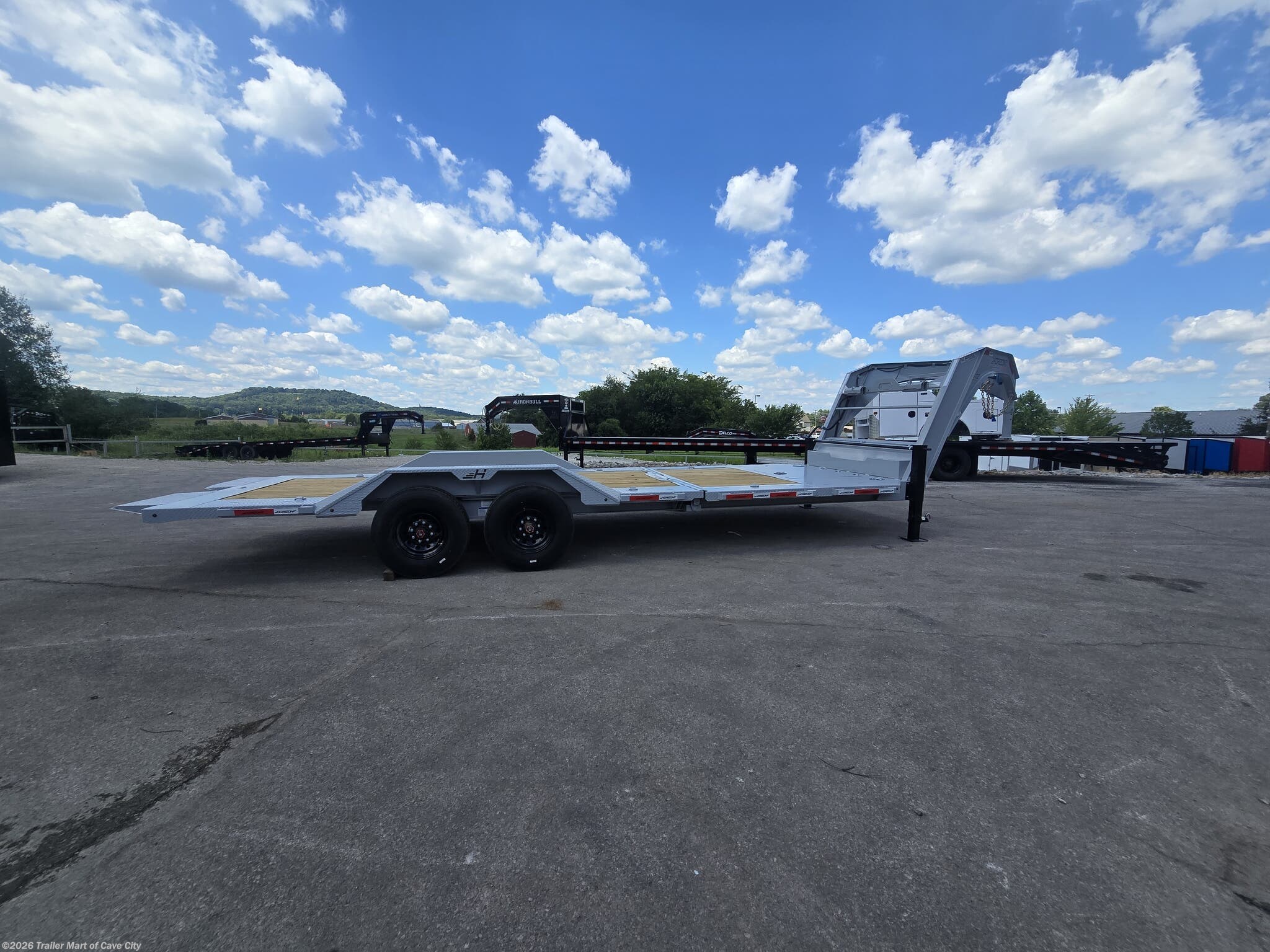

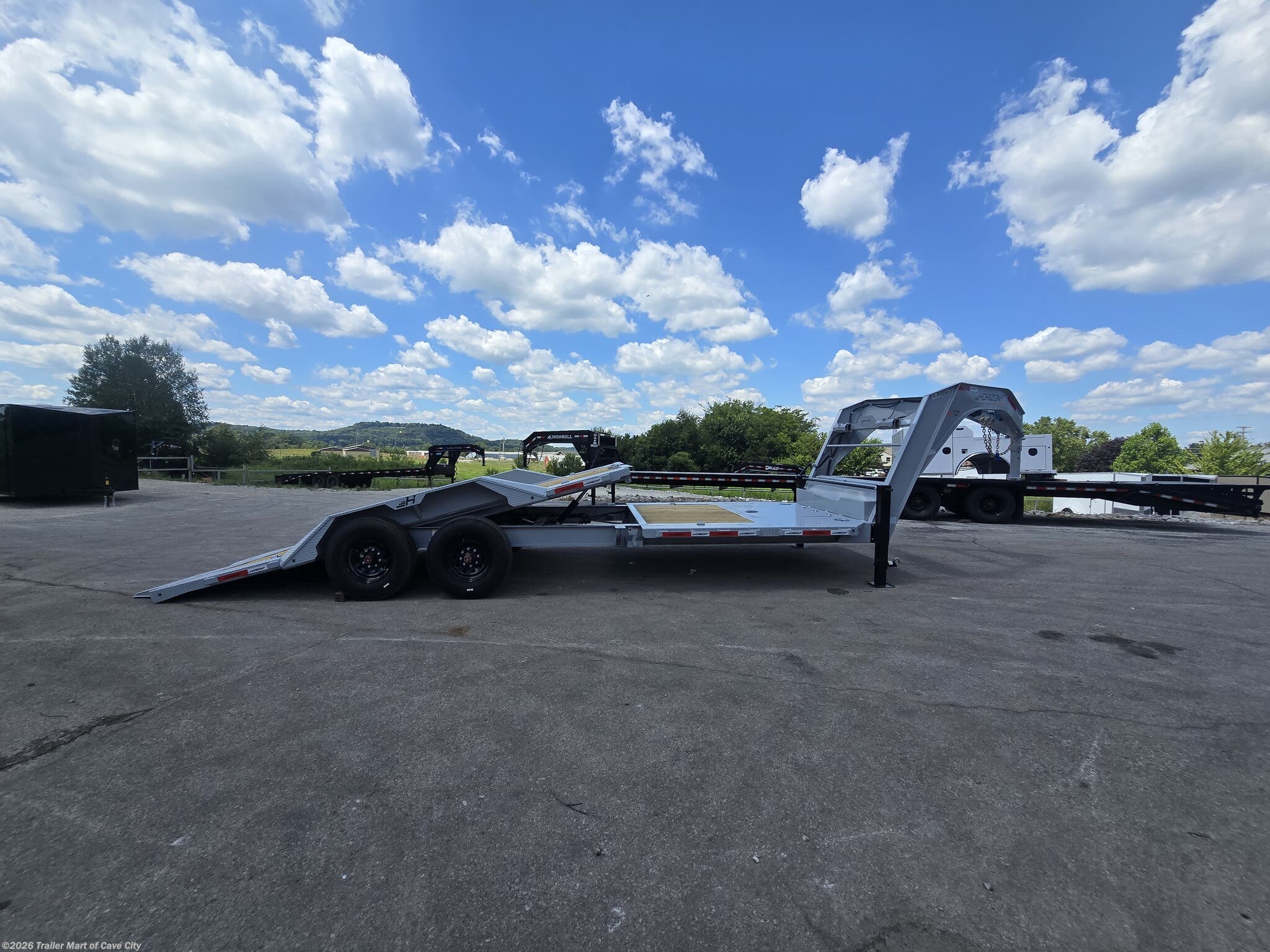

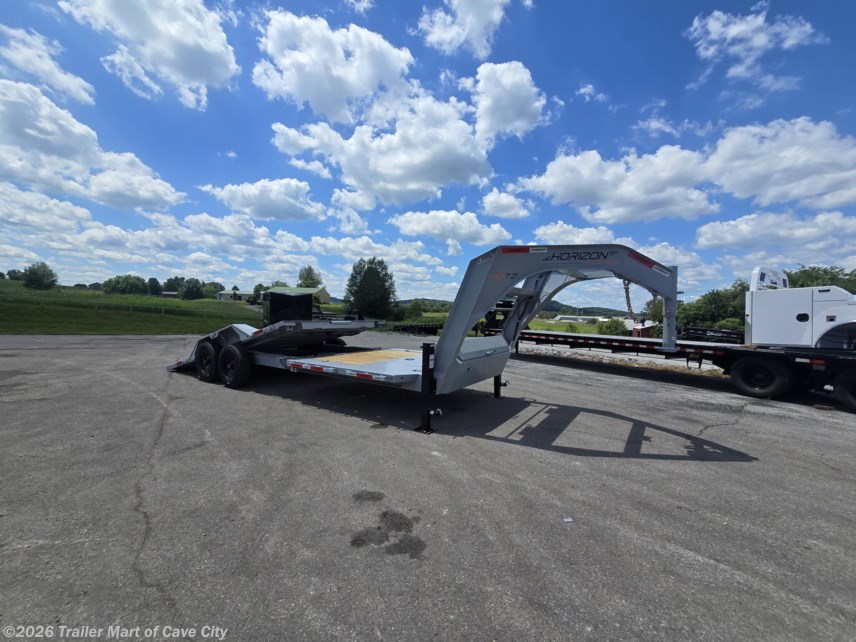

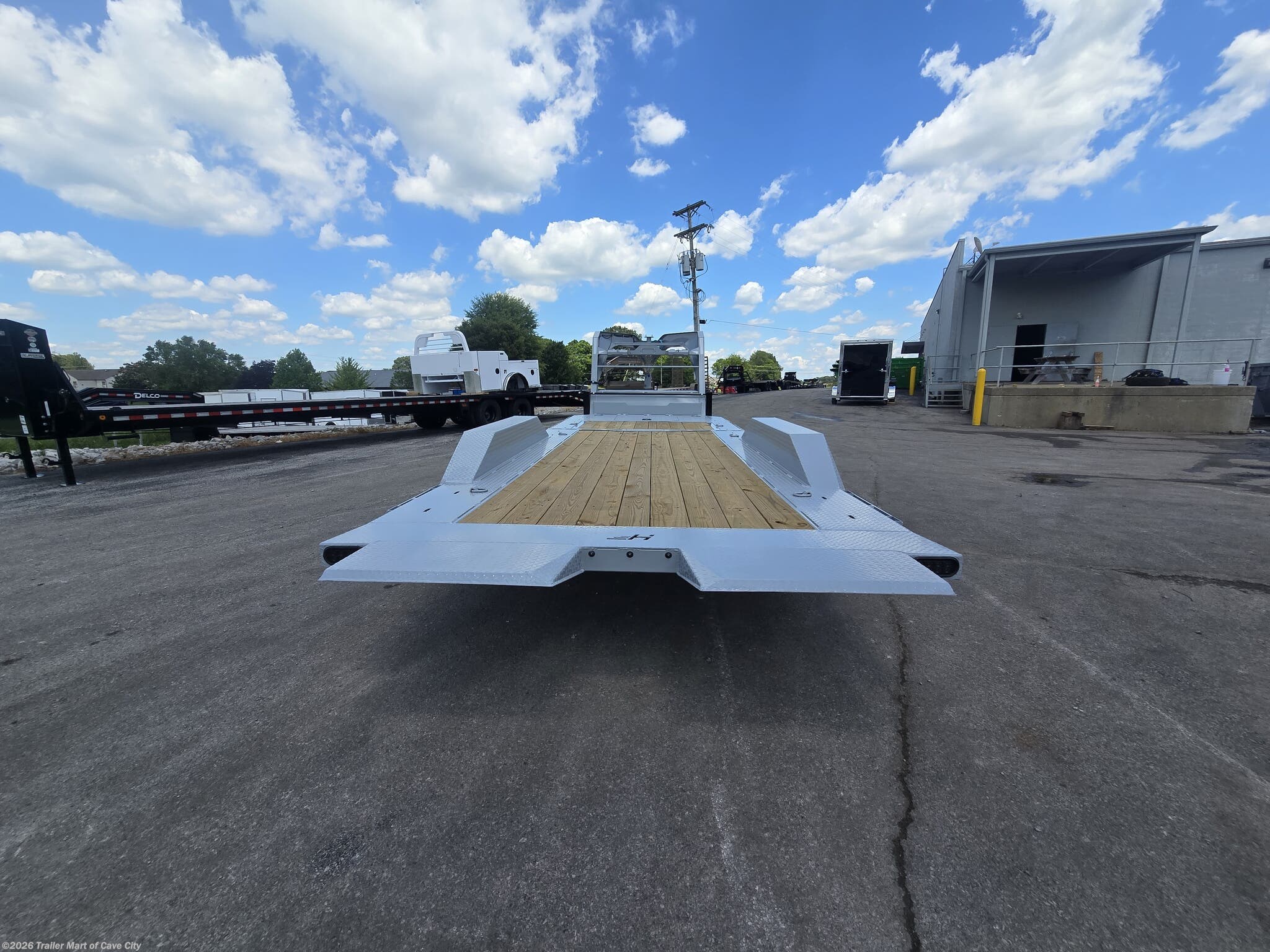

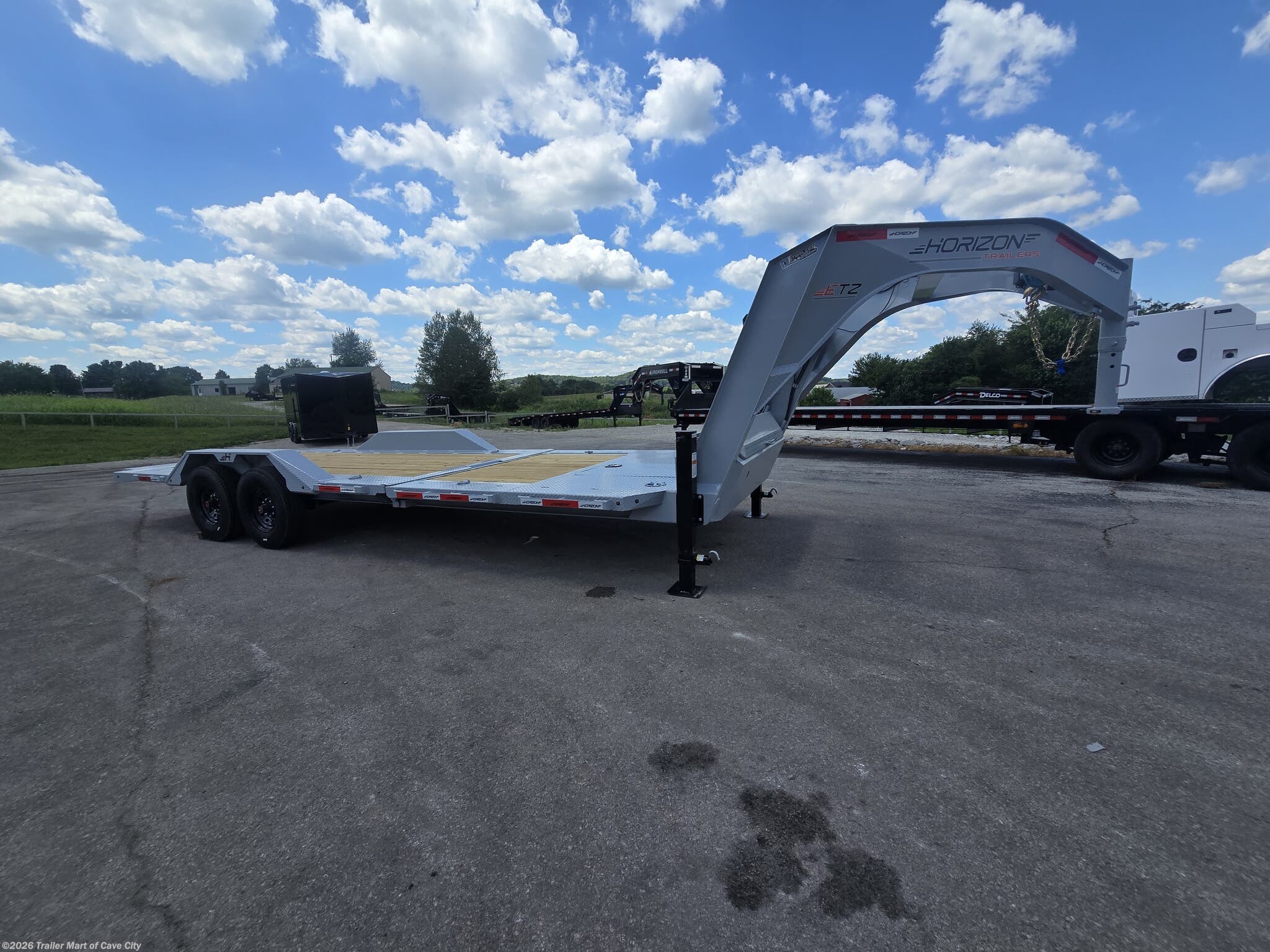

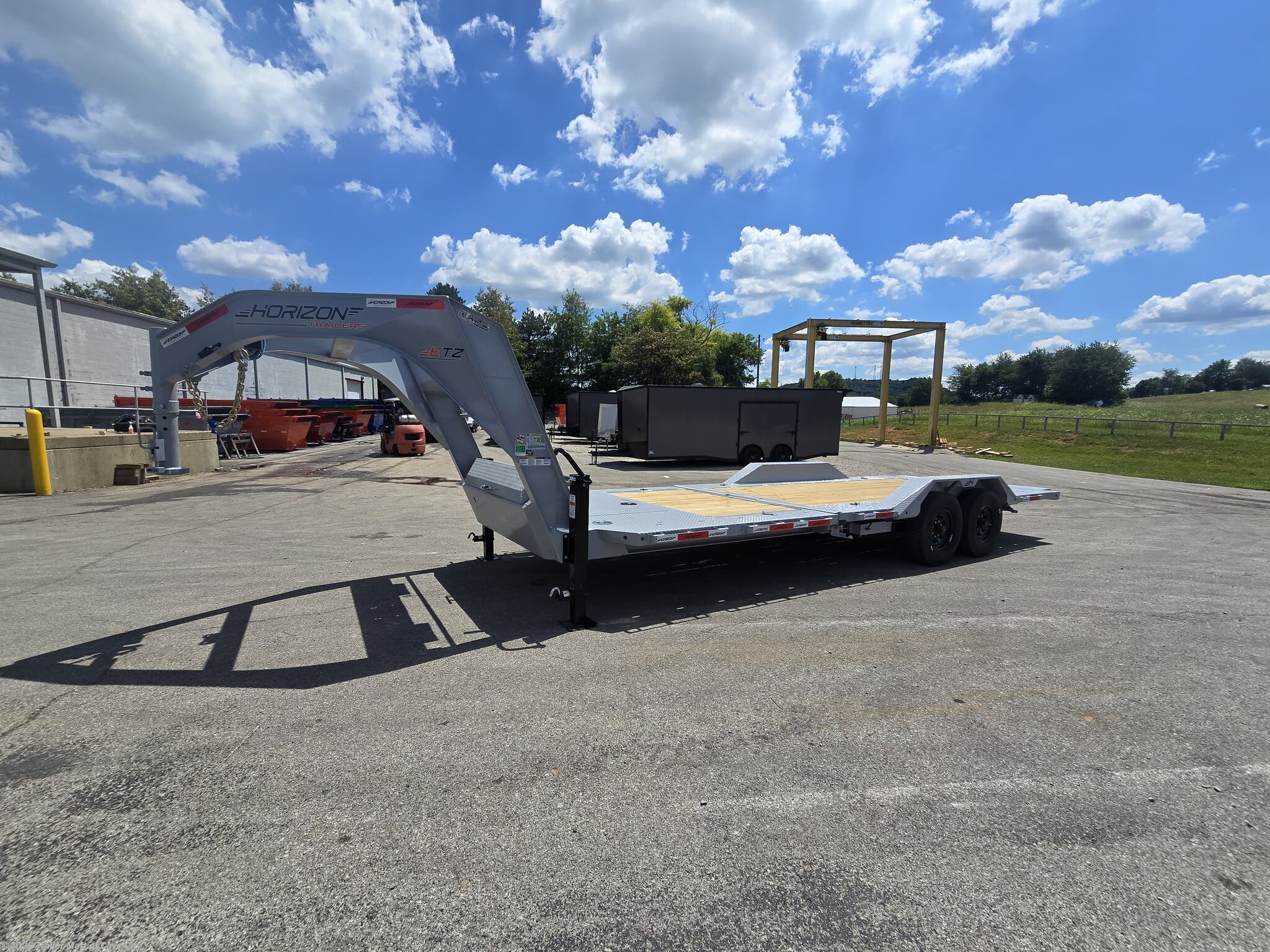

2026 Horizon Trailers ETZ 24' (16'+8') Gooseneck Split Tilt Trailer Gallery
