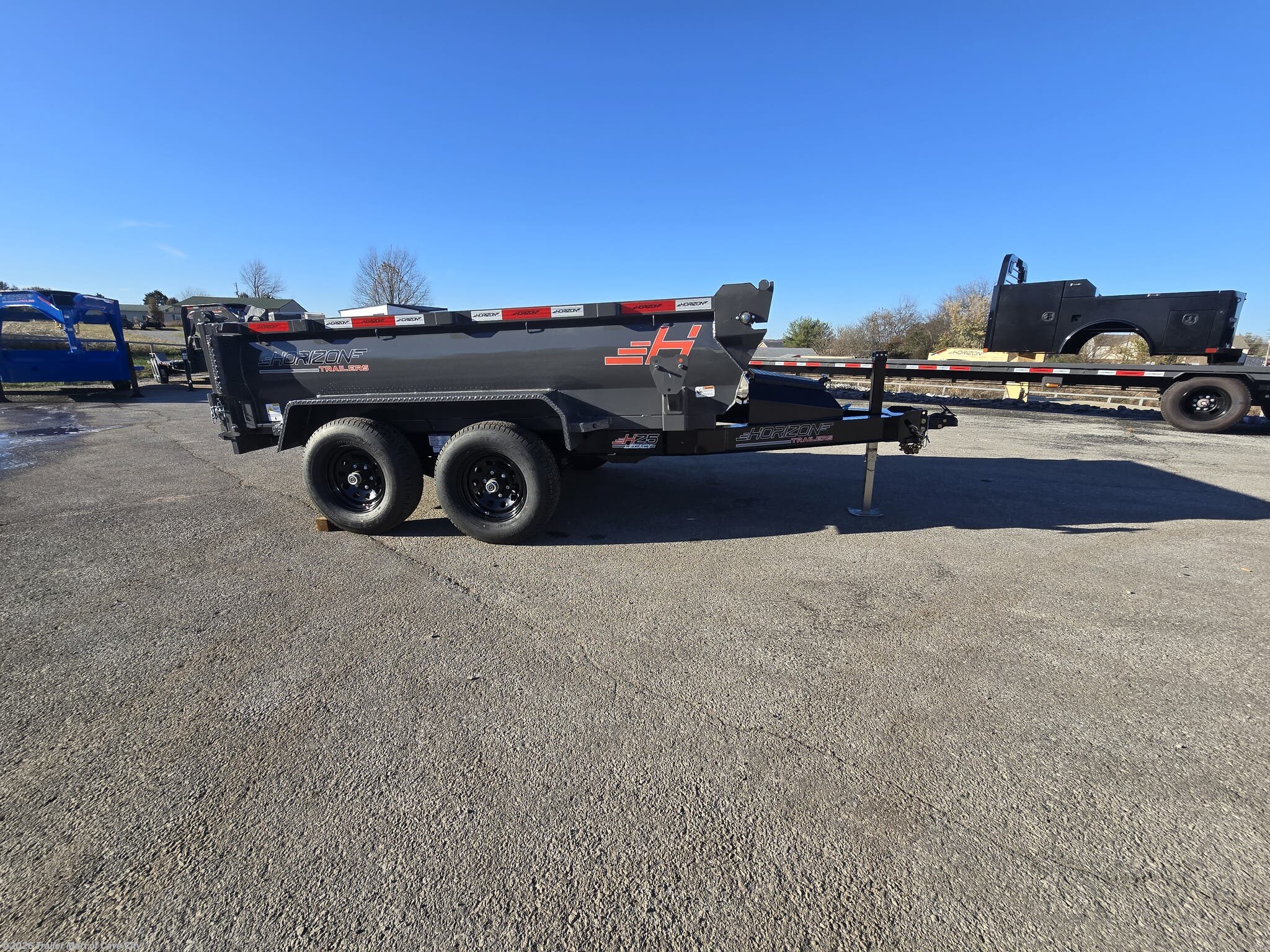

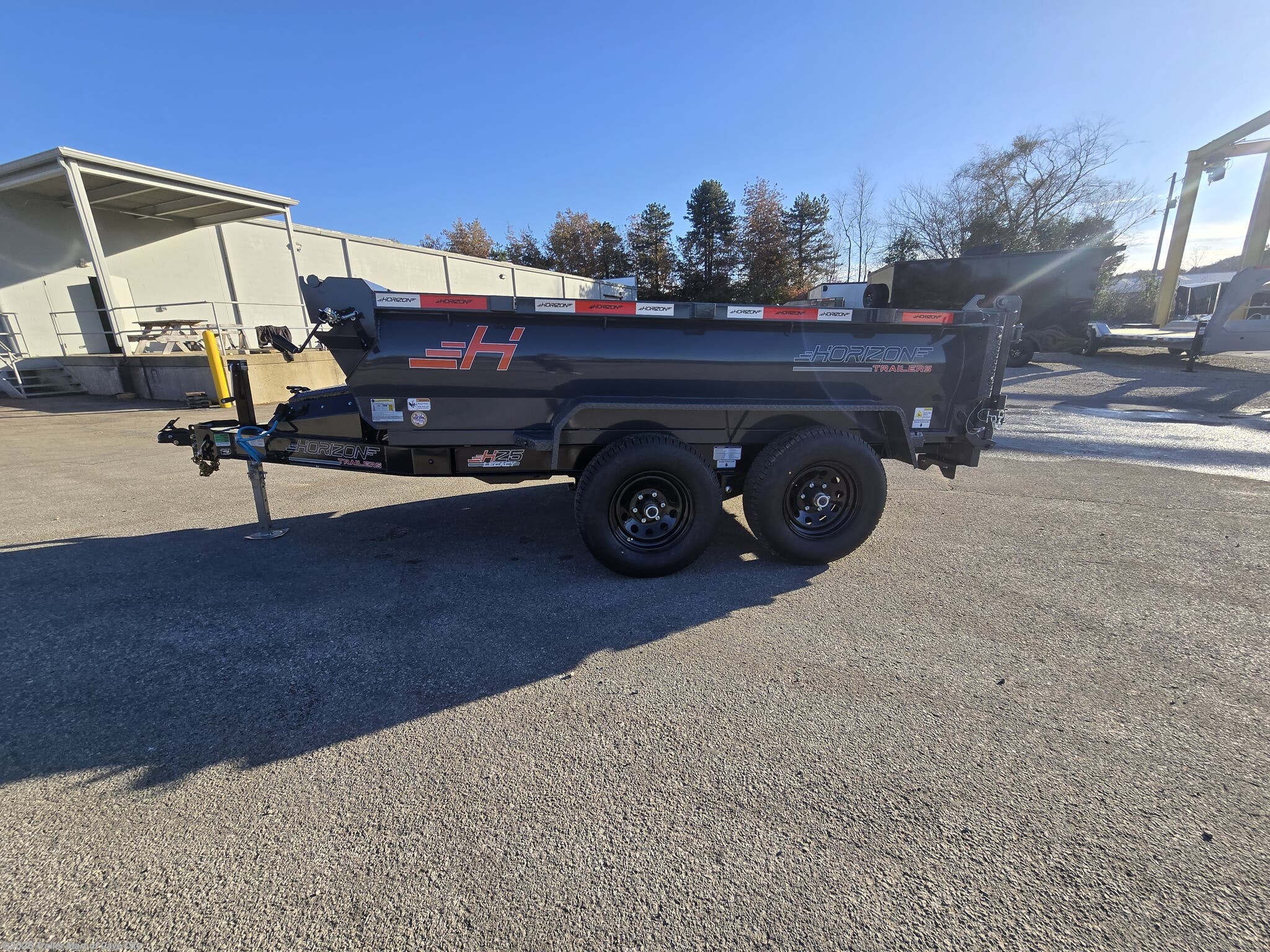

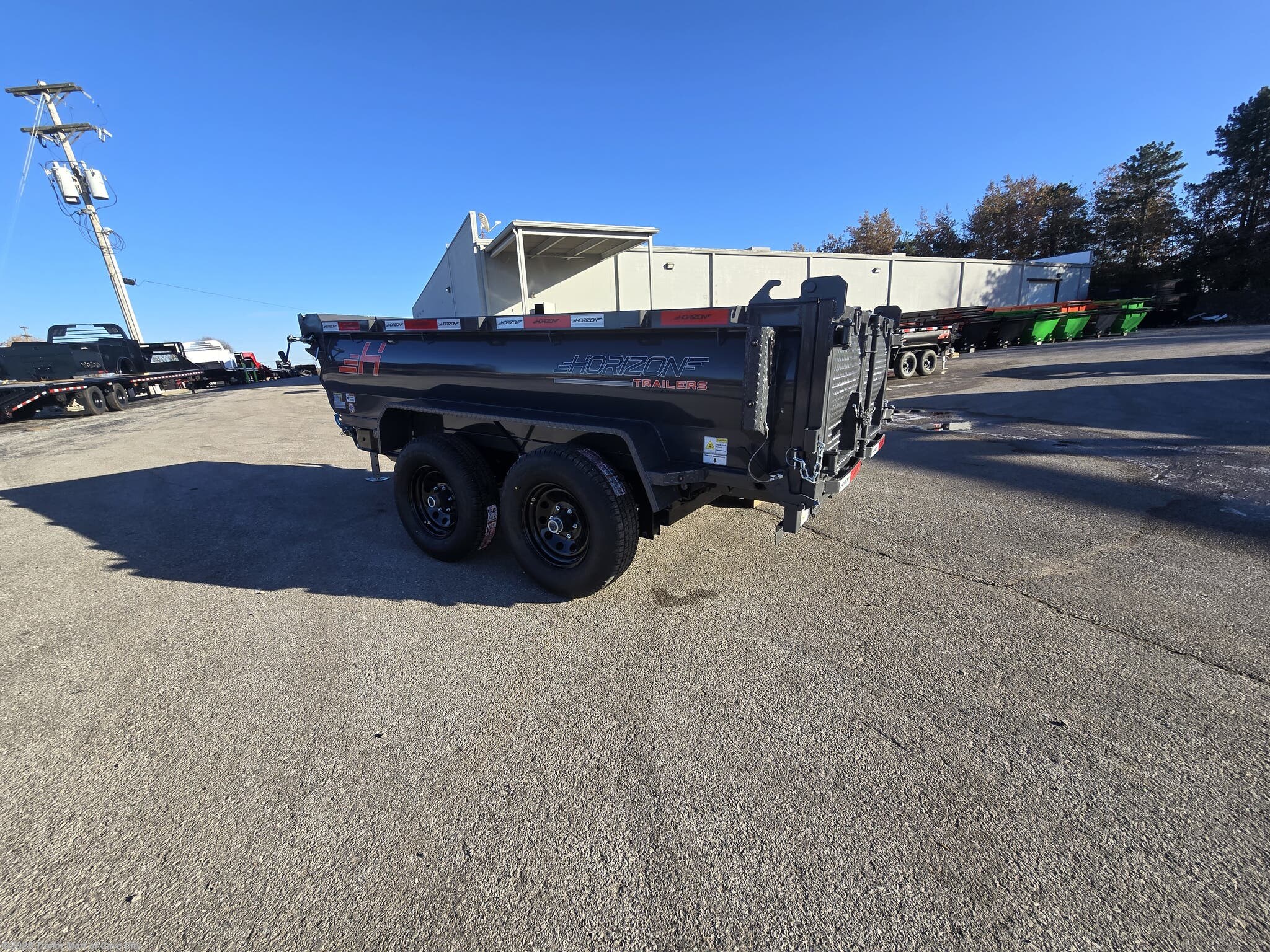

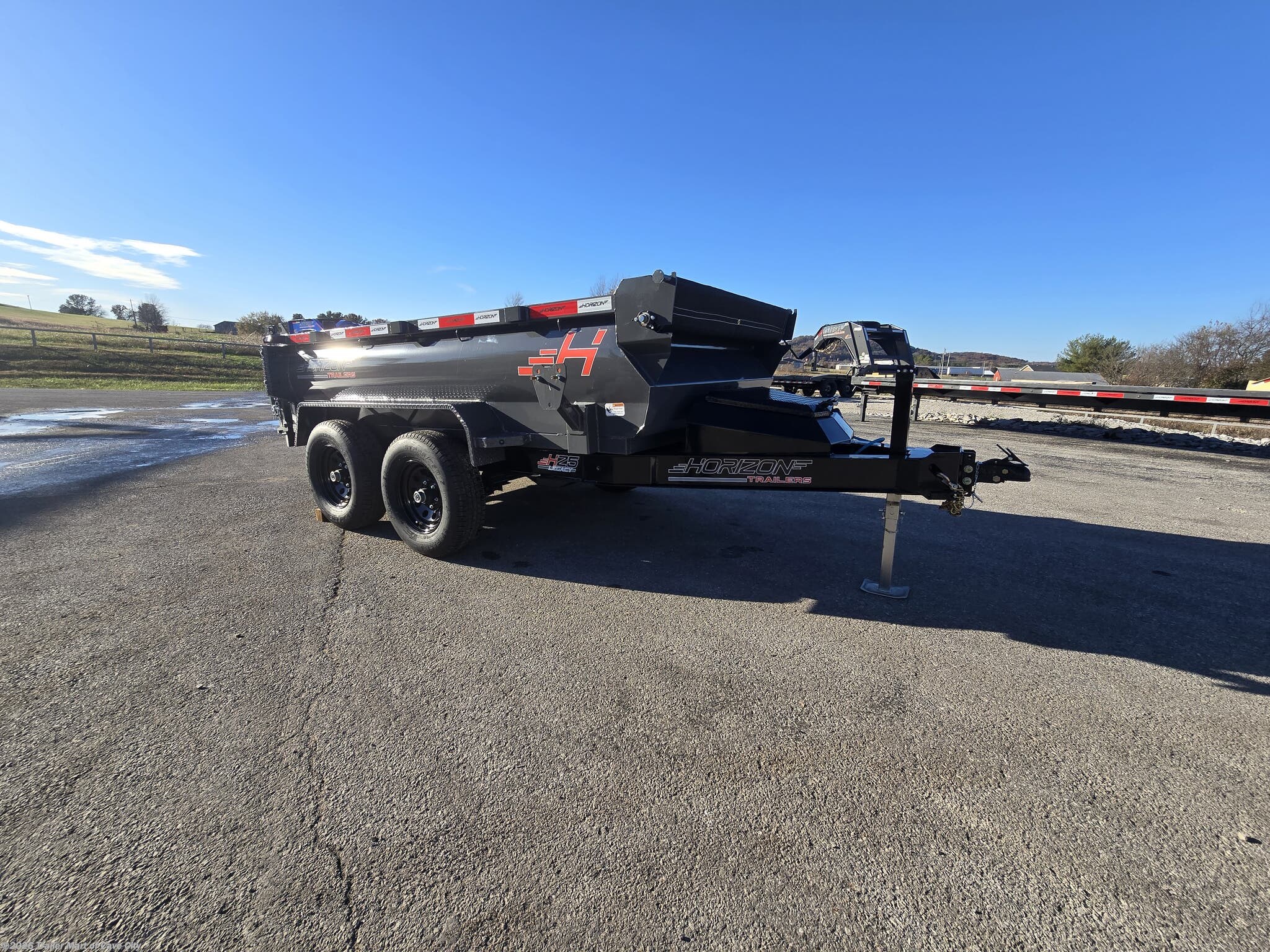

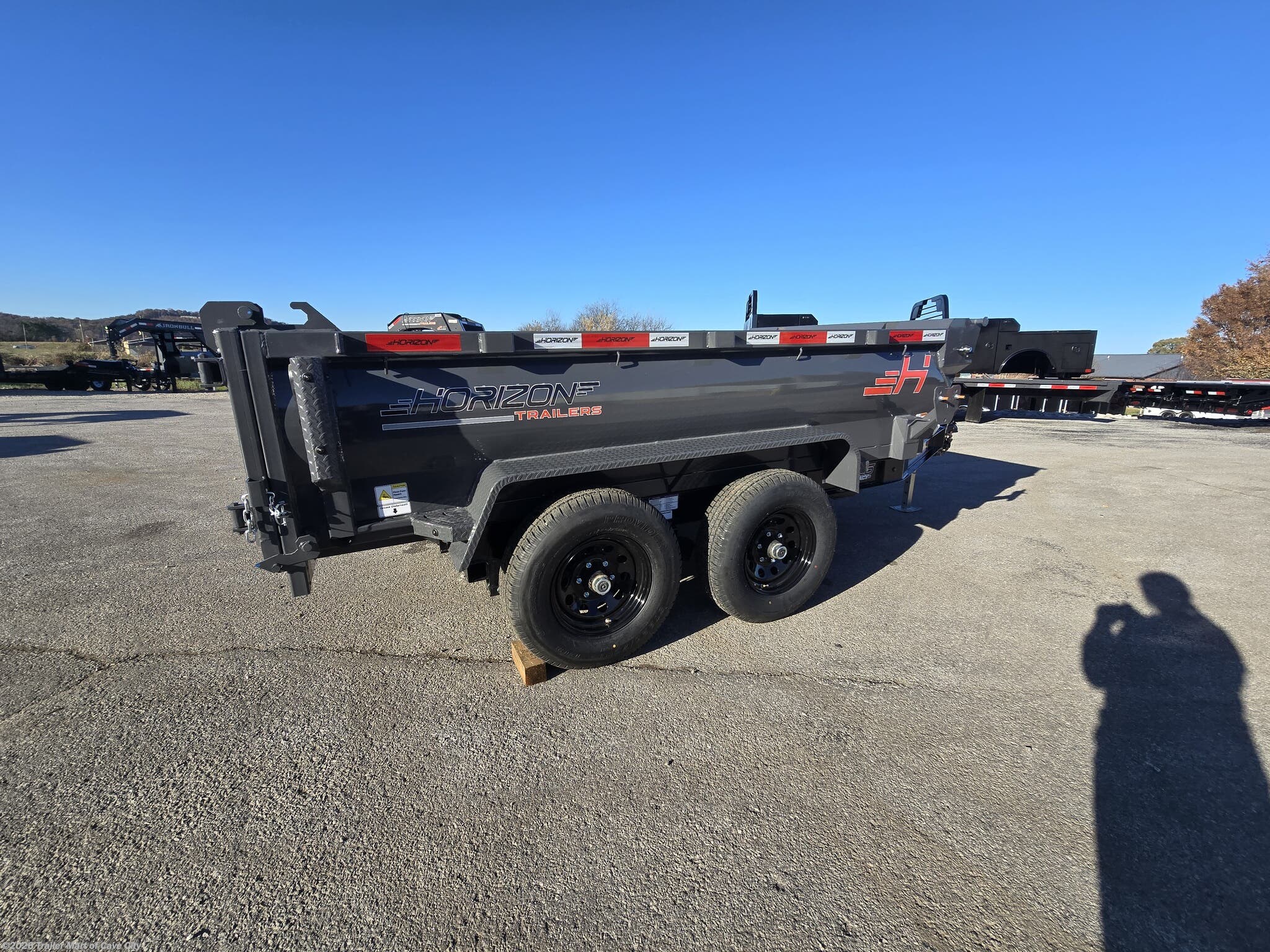

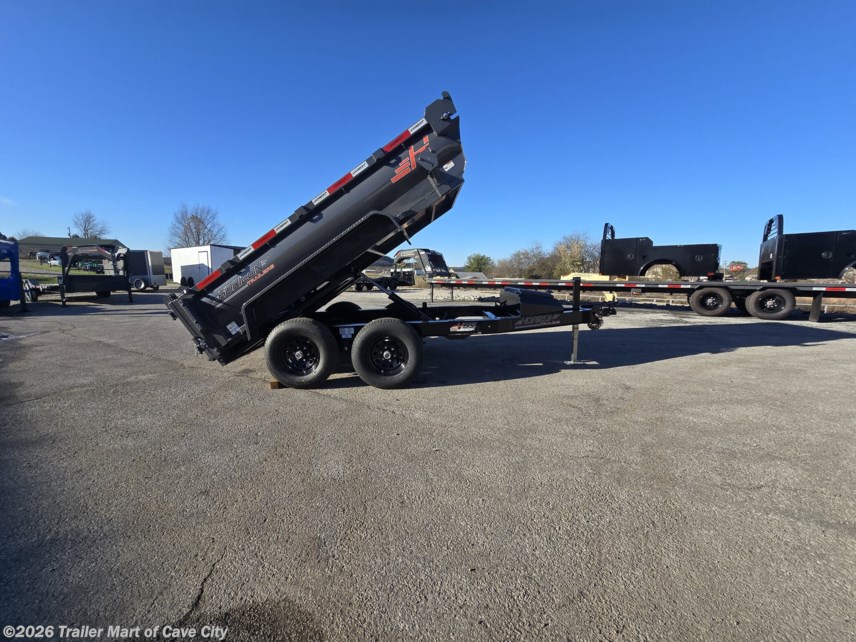

New 2026 Horizon Trailers HZ5BP 5'x10' Dump Trailer (5Ton)
INVENTORY HIGHLIGHTS:
Sale!
Estimated Payments
INTEREST RATE
11.99%
CASH/TRADE
$950
TERM
5 Years
Est. Monthly Payment
$190
TRAILER SPECS
DIMENSIONS - BUMPER PULL
LENGTHS: 10'
SIDE HEIGHT: 2'
BED WIDTH: 60"
BED HEIGHT: 24"
WEIGHT RATINGS
GAWR: 5,200 LBS
GVWR: 11,300 LBS
FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
STYLE: 2 TONE COLORS AVAILABLE, CHASSIS / DUMP
WARRANTY
AXLE WARRANTY: 5 YEAR SPRING AXLE WARRANTY
TRAILER WARRANTY: THREE (3) YEAR FRAME/ONE (1) YEAR PARTS WARRANTY

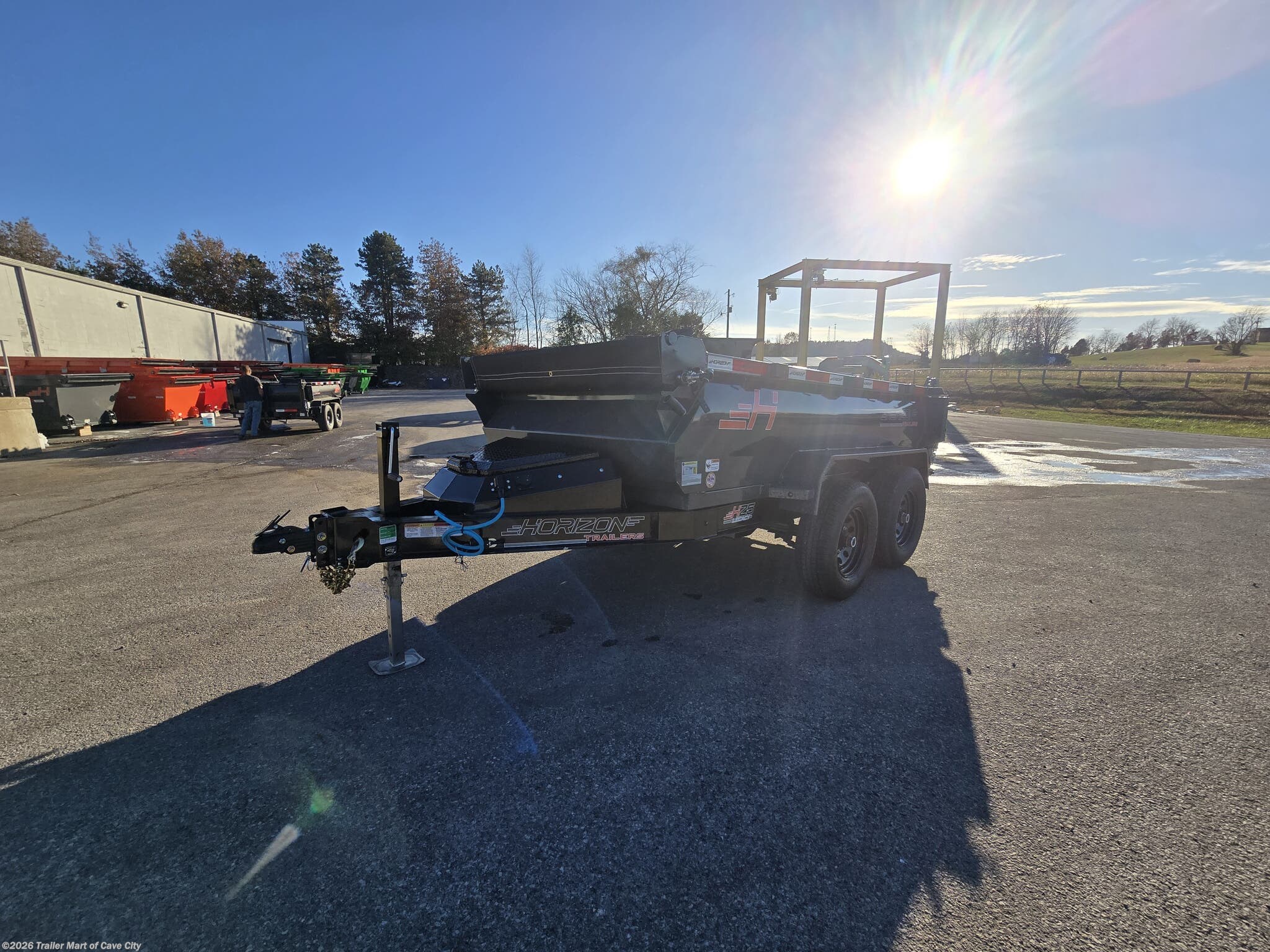

TONGUE
TONGUE
TYPE: 6" I-BEAM (8.5 LBS/FT)
LENGTH: 50"
COUPLER
STANDARD COUPLER: ADJUSTABLE 2-5/16" BP COUPLER (17,000 LBS)
JACKS
FRONT JACK: 1 SIDE WIND DROP JACK LEG (7000 LBS)
TOOLBOX

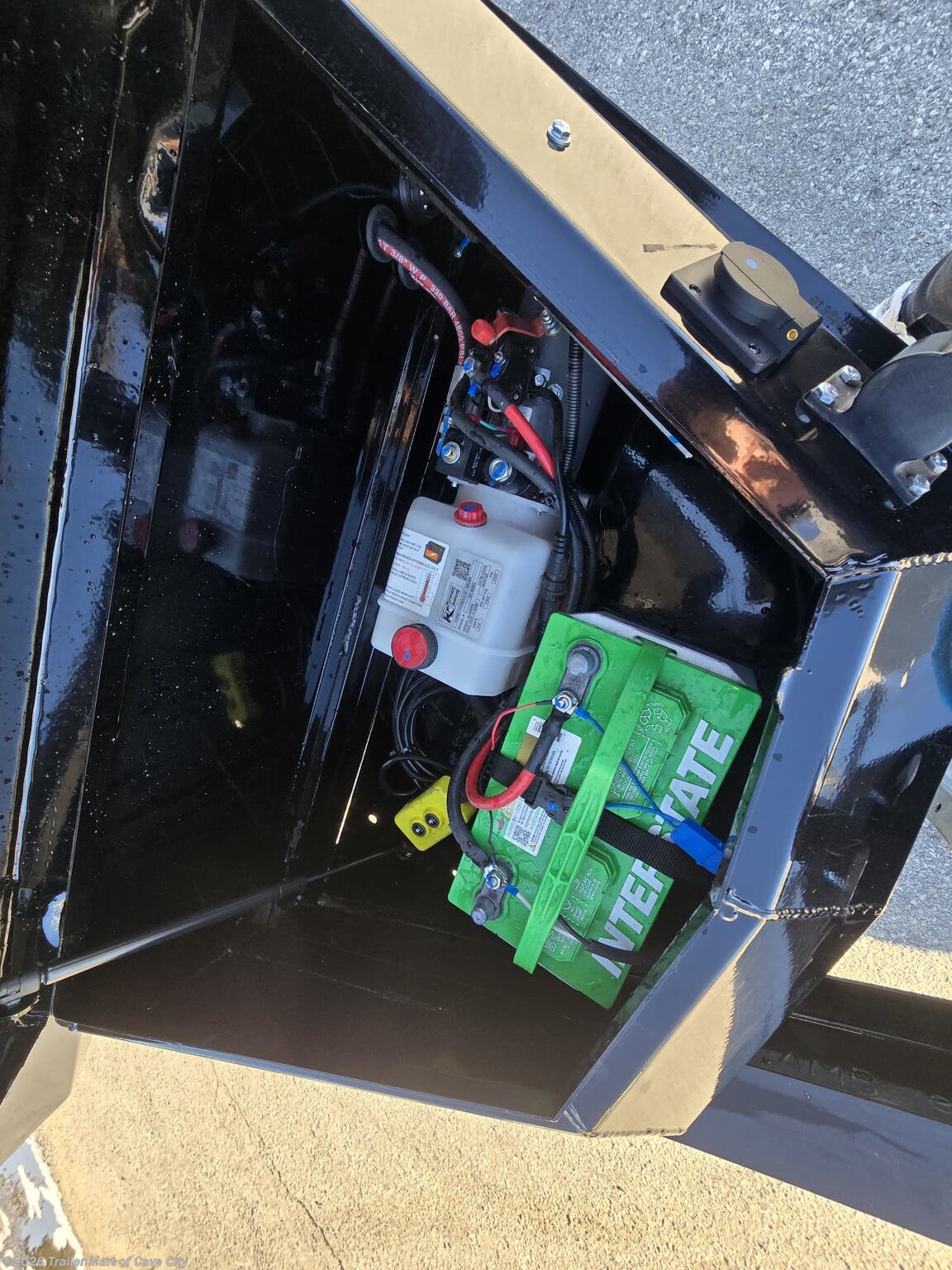

TOOLBOX: LOCKABLE TOOLBOX BP (HOUSES BATTERY AND PUMP)
SAFETY SYSTEM
SAFETY CHAINS: 1/4" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH)
CHASSIS
FRAME
MAIN FRAME: 6" I-BEAM (8.5 LBS/FT)
DUMP
BED
BED WIDTH: 60"
BED HEIGHT: 24"
FLOORING: 9GA. FLOOR
FRAME: 1,1/2" X 3" X 11GA. TUBING
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING
D-RINGS: 4 D RINGS WELDED INSIDE BOX

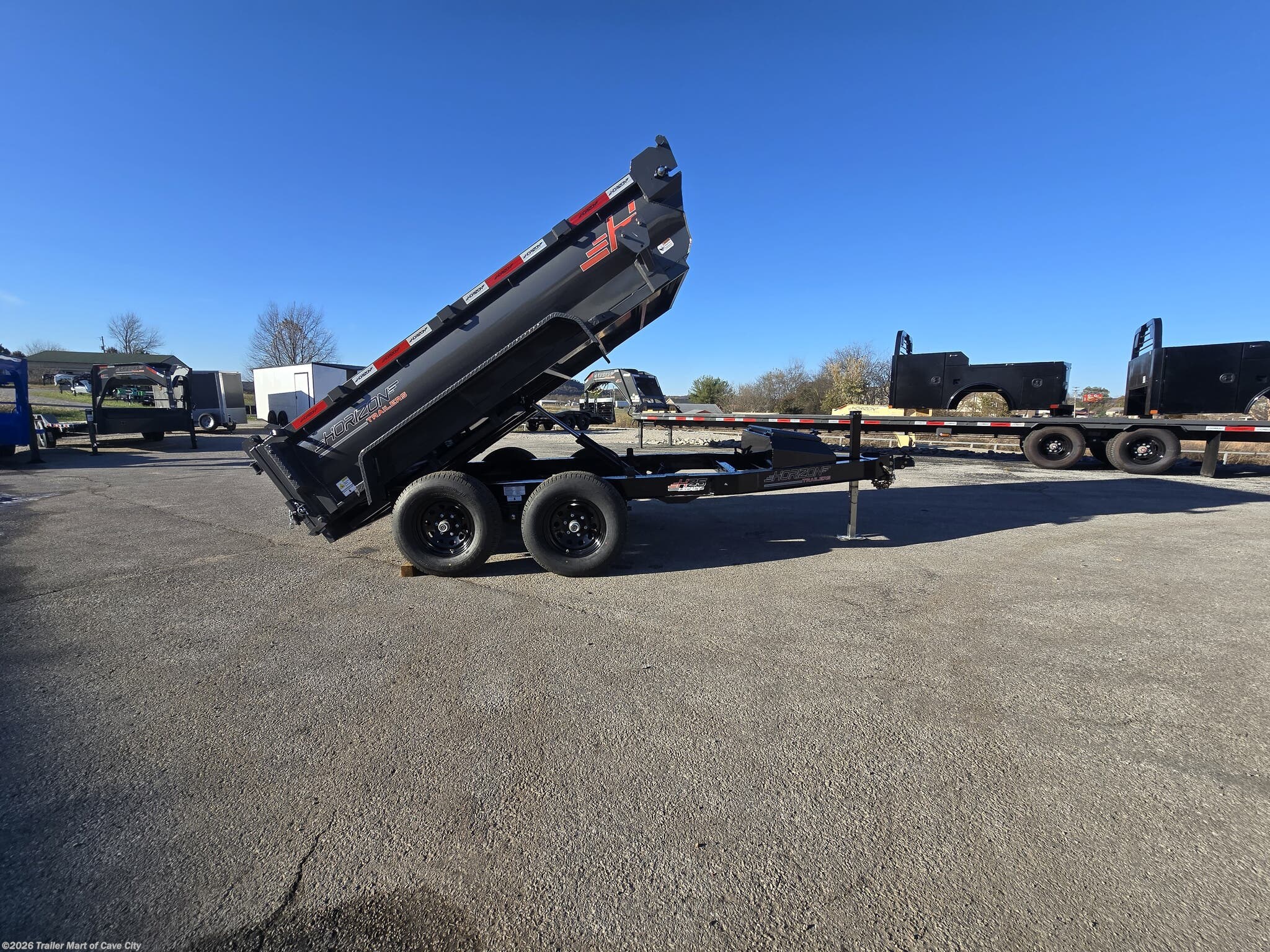

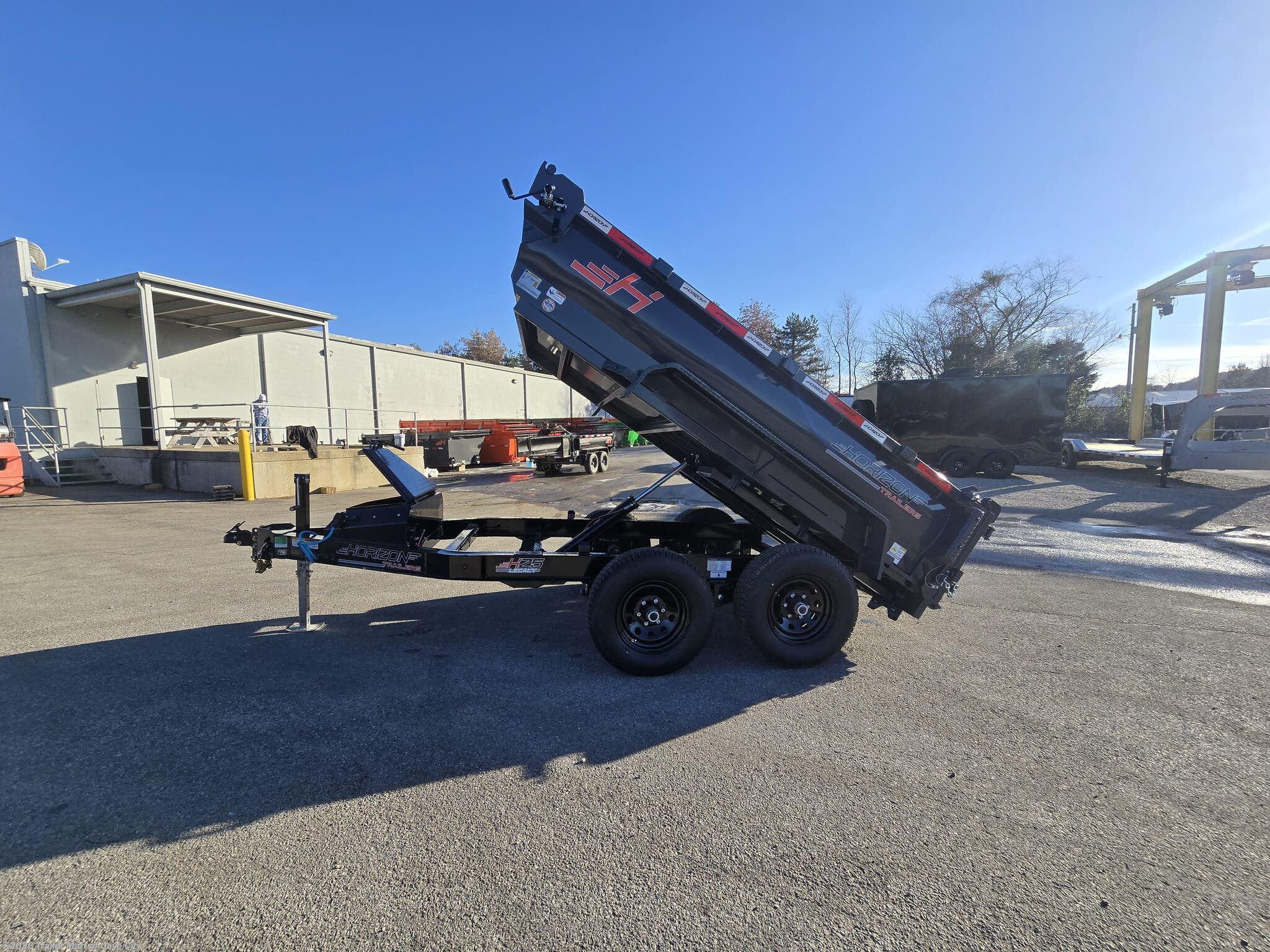

DUMP ANGLE: 40°
REAR

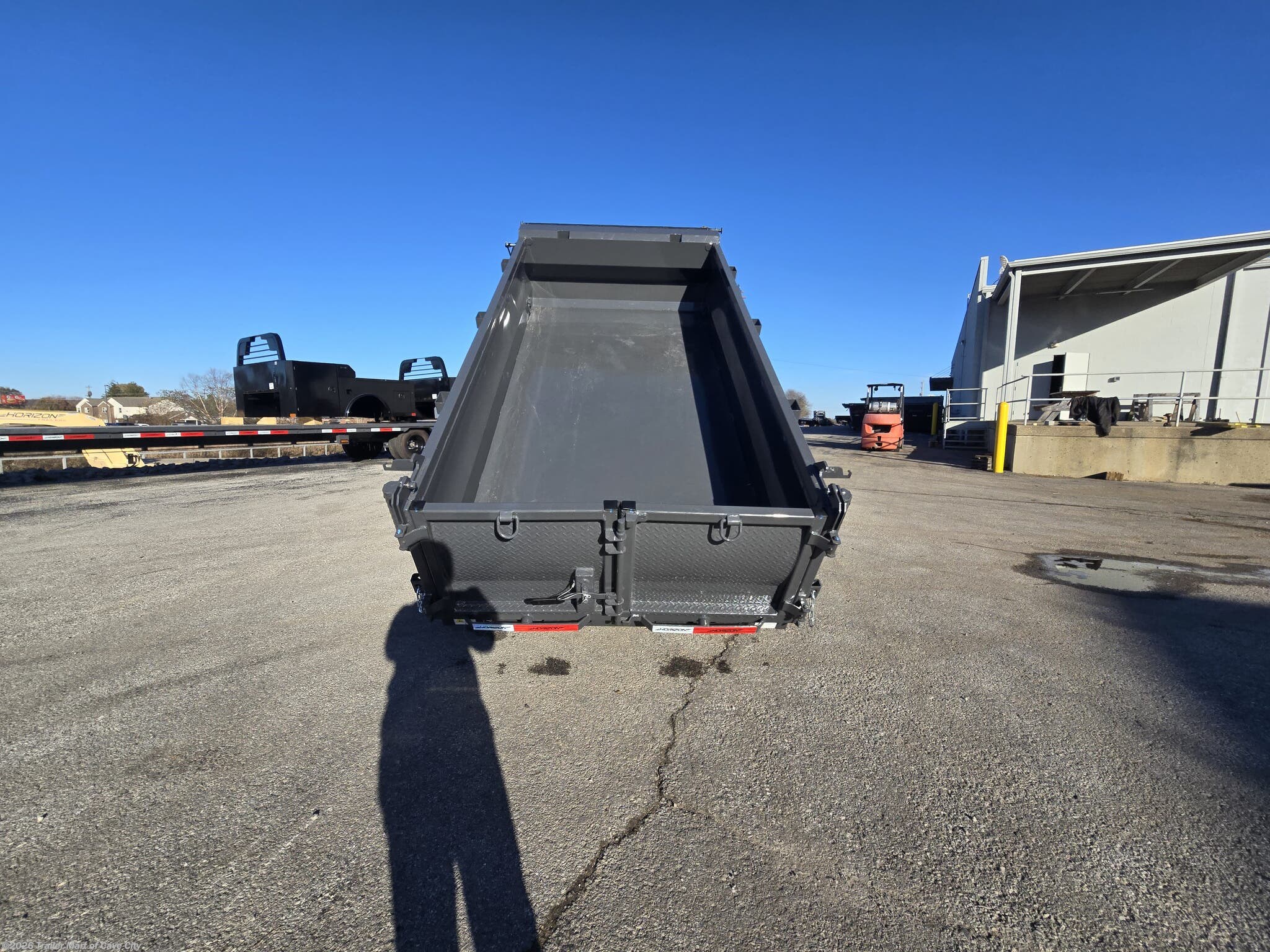

GATE: 2 WAY DOOR
SIDES
HEIGHT: 2'
THICKNESS: 12GA.
TYPE: ROUNDED STEEL
TOP RAIL: 2" X 3" X 11GA. TUBING
STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS
HOOKS: 3/8" ROUND "J" HOOKS
FENDERS: 14GA DIAMOND PLATE STEEL FENDERS
RAMPS: SIDE MOUNTS W/ 5' LONG SLIDE IN 3" CHANNEL RAMPS CHANNEL RAMPS (4,000 LBS)
WHEEL RATING EACH ONLY OVER AREA OF 12" OR MORE)
SPARE: WELD ON SPARE TIRE MOUNT
SAFETY
TARP: MANUAL TARP KIT
LIFT SYSTEM
HYDRAULICS
SYSTEM: HYDRAULIC - POWER UP / GRAVITY DOWN
PUMP: KTI 12V HYDRAULIC PUMP
CONTROLLER: 14' CONTROL CABLE
DUMP LIFT
CYLINDER: 5" X 10" SINGLE PUSH CYLINDER
HOIST CAPACITY: 10,000 LBS
RUNNING GEAR
TIRES
TYPE: RADIAL TIRES
SIZE: ST205/75R15
PLY: 10
RATING: 2,830 LBS
RIMS: 15" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 5.2K ELECTRIC BRAKE AUTO ADJUST EZ LUBE SPRING AXLES
BOLT PATTERN: 6 ON 5.5"
AXLE COUNT: 2
SUSPENSION TYPE: SPRING
AXLE WARRANTY: 5 YEAR SPRING AXLE WARRANTY
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
BATTERY: 1 - INTERSTATE 27 DEEP CYCLE BATTERY
CHARGING SYSTEM: 110V INTEGRATED TRICKLE CHARGER
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
Condition:
New
Exterior Color:
Black/Ash Gray
GVWR:
11,300 lb
Dry Weight:
2,420 lb
Payload Capacity:
8,880 lb
Hitch Type:
Bumper Pull
Stock #:
13619
VIN:
3H7BD1026TR013619
Location:
Cave City, KY
Year:
2026
Brand:
Floorplan:
HZ5BP 5'x10' Dump Trailer (5Ton)
Type:
Length:
10' 0"
Width:
5' 0"
Height:
2' 0"
