New 2026 Horizon Trailers HZX 16'GN 10K Telescopic Dump Trailer
INVENTORY HIGHLIGHTS:
Sale!
Estimated Payments
INTEREST RATE
11.99%
CASH/TRADE
$2,250
TERM
5 Years
Est. Monthly Payment
$450
DIMENSIONS - GOOSENECK
LENGTH: 16'
SIDE HEIGHT: 3'
BED WIDTH: 83"
BED HEIGHT: 28"
WEIGHT RATINGS
GAWR: 10,000 LBS
GVWR GN: 22,400 LBS
FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
STYLE: 2 TONE COLORS AVAILABLE, CHASSIS / DUMP
WARRANTY
AXLE WARRANTY: 11 YEAR TORSION AXLE WARRANTY
TRAILER WARRANTY: THREE (3) YEAR FRAME/ONE (1) YEAR PARTS WARRANTY

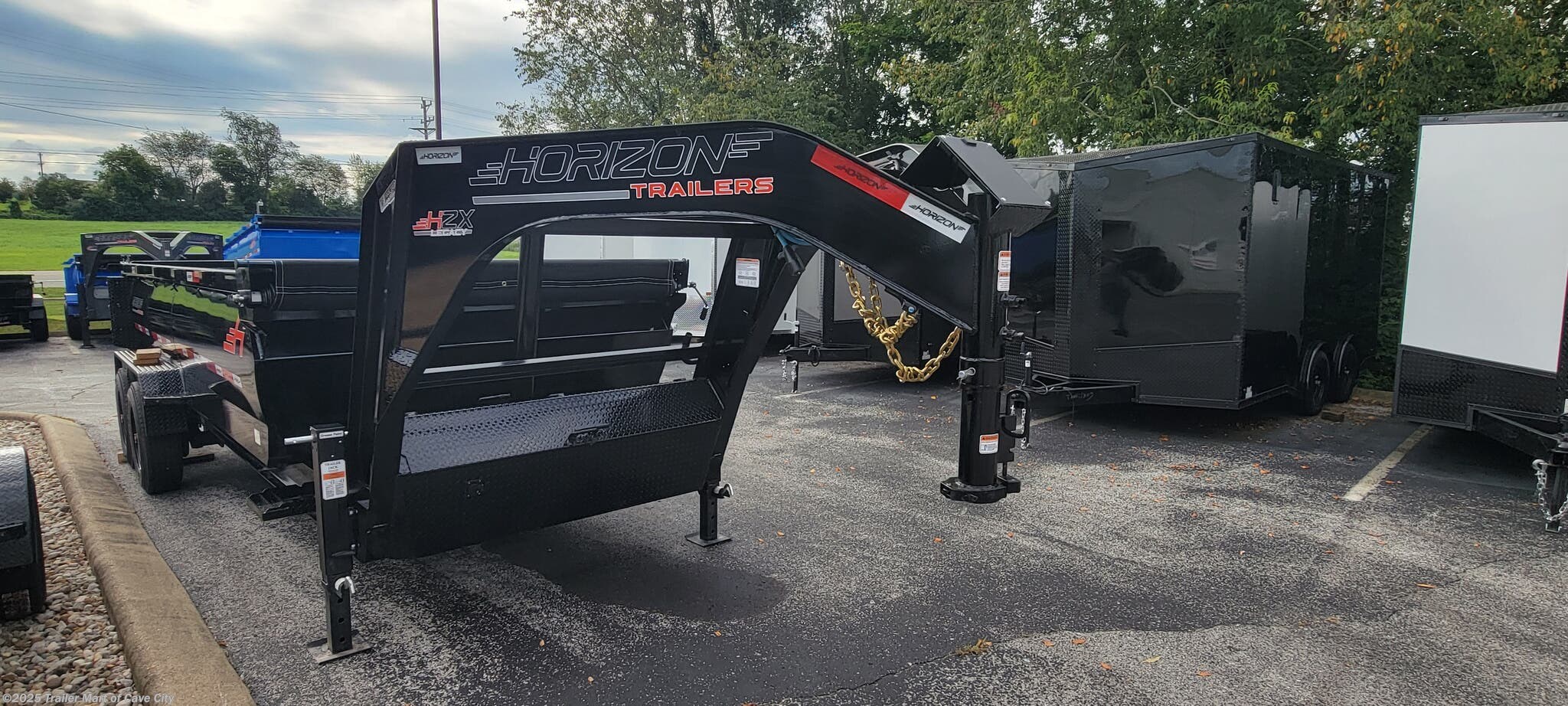

TONGUE
GN
TYPE: 10" ENGINEERED STEEL I-BEAM
LENGTH: 98" (FROM BEHIND RISER)
HEIGHT: 70" (FROM UNDERNEATH NECK)
SPARE: WELD ON SPARE TIRE MOUNT
COUPLER
STANDARD COUPLER GN: ADJUSTABLE 2-5/16" GN COUPLER (30,000 LBS)
JACKS
FRONT JACKS GN: 2 SIDE WIND SPRING LOADED DROP JACK LEGS (12,000 LBS)

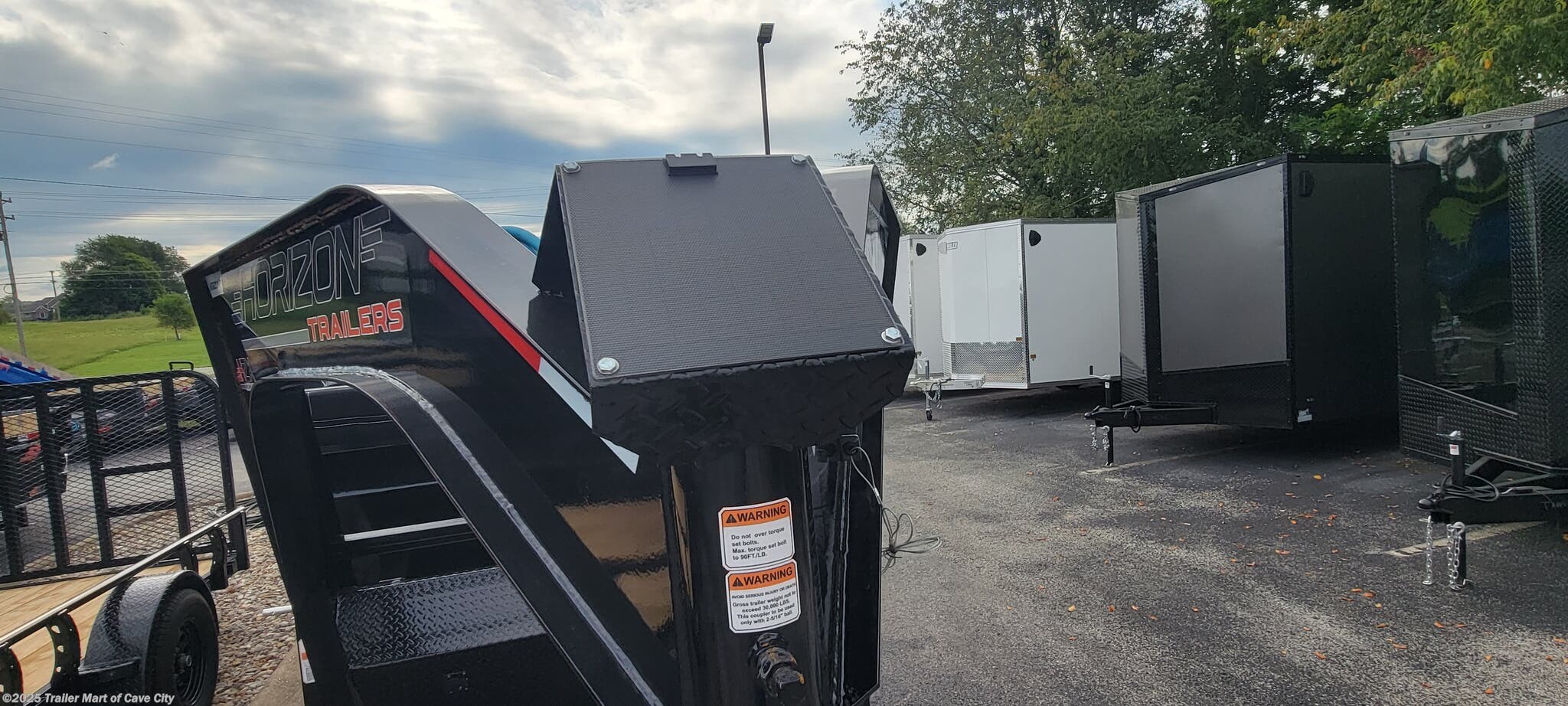

TOOLBOX
TOOLBOX GN: MEGA LOCKABLE TOOLBOX HOUSES BATTERY & PUMP (W/ EXTRA STORAGE)
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 BRIGHTWAY GROUP ELECTRIC BREAKAWAY KIT
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK (2 EACH)
CHASSIS
FRAME
MAIN FRAME: 10" I-BEAM (17 LBS/FT)
STEPS: SIDE STEP ON BOTH SIDES
BED
BED WIDTH: 83"
BED HEIGHT: 28"
FLOORING: 7GA. STEEL BED
FRAME: 3" X 5" X 1/4" ANGLE IRON
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT) 16" SPACING
D-RINGS: 4 D RINGS WELDED INSIDE BOX
DUMP ANGLE: 44° - 48°
REAR
FRAME
GATE: 2 WAY DOOR - SPREADER GATE
RAMPS: RAMP POCKETS W/2 - 6' 4" HEAVY DUTY SLIDE IN 4" CHANNEL RAMPS (7,000 LBS WHEEL RATING EACH ONLY OVER AREA OF 12” OR MORE)
SIDES
HEIGHT: 3'
THICKNESS: 10GA.
TYPE: ROUNDED STEEL
TOP RAIL: 3" X 5" X 11GA. TUBING
STAKE POCKETS: 1,5/8" X 3,5/8" (ID) STAKE POCKETS
HOOKS: 3/8" ROUND "J" HOOKS
FENDERS: 12GA. DIAMOND PLATE STEEL FENDERS
REAR STANDS: PAIR OF REAR STABILIZER STANDS
TARP: MANUAL TARP KIT
LIFT SYSTEMS
SYSTEM: 2 BUTTON HYDRAULIC - POWER UP / GRAVITY DOWN
PUMP: KTI 12V HYDRAULIC PUMP
CONTROLLER: 14' CONTROL CABLE
DUMP LIFT
LIFT CYLINDER: 12 TON TELESCOPIC CYLINDER
RUNNING GEAR

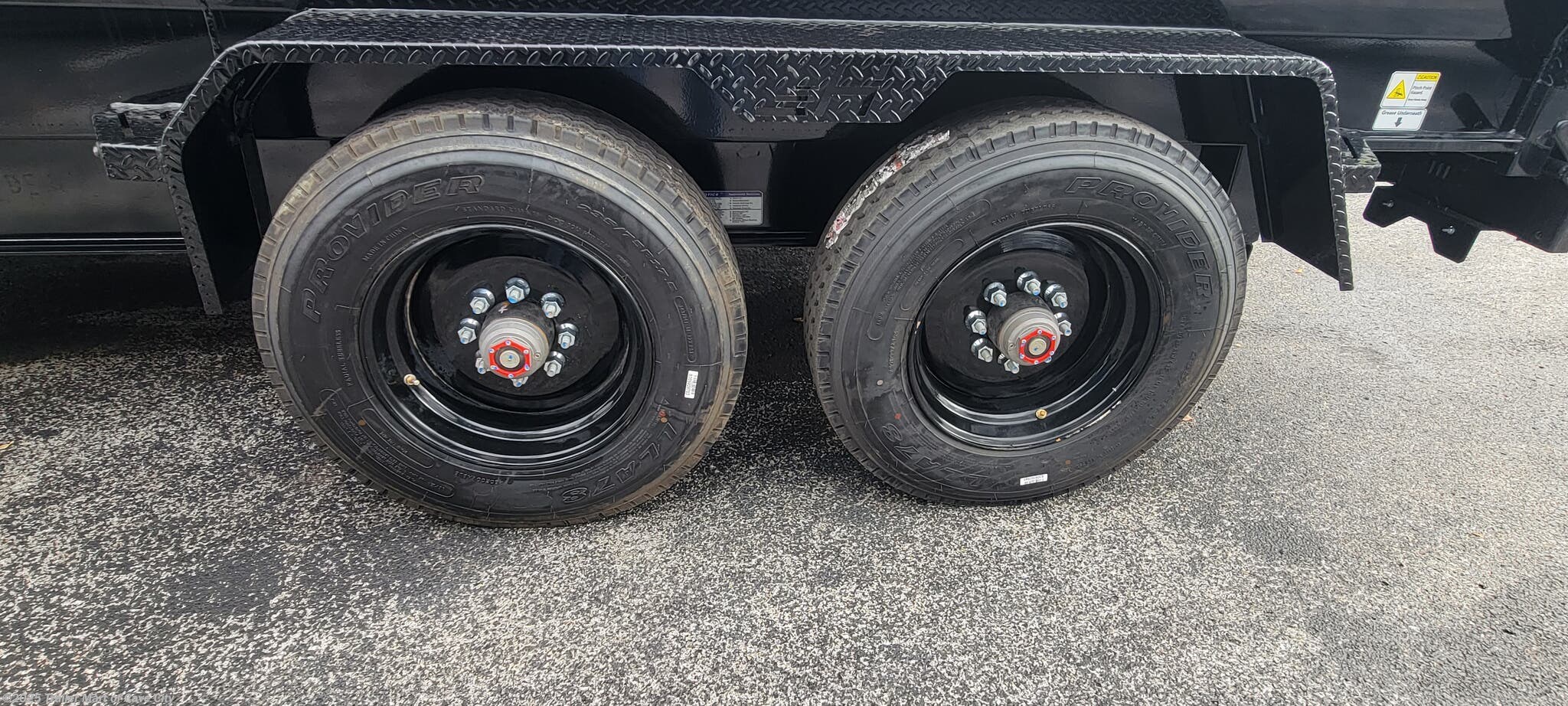

TIRES
TYPE: RADIAL TIRES
SIZE: ST235/75R17.5, SUPER SINGLE
PLY: 18
RATING: 6,055 LBS
RIMS: 17.5” BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 10K ELECTRIC BRAKE AUTO ADJUST OIL BATH TORSION AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: TORSION
AXLE WARRANTY: 11 YEAR TORSION AXLE WARRANTY
ELECTRICAL AND LIGHTING
BATTERY AND CHARGING
BATTERY: 1 - INTERSTATE 27 DEEP CYCLE BATTERY
CHARGING SYSTEM: 110V INTEGRATED TRICKLE CHARGER
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV].
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
UPGRADES:
SOLAR PANEL
Condition:
New
Exterior Color:
Black
GVWR:
22,400 lb
Dry Weight:
7,290 lb
Payload Capacity:
15,110 lb
Hitch Type:
Gooseneck
Stock #:
11577
VIN:
3H7GD162XTR011577
Location:
Cave City, KY
Year:
2026
Brand:
Floorplan:
HZX 16'GN 10K Telescopic Dump Trailer
Type:
Length:
16' 0"
Width:
7' 0"
Height:
3' 0"
CONTACT US
SIMILAR UNITS FOR SALE
$28,195.00
$22,495.00
$18,895.00
$15,095.00
DEALER INFORMATION
Advertised pricing excludes applicable taxes title and licensing, dealer processing fee, shipping, reconditioning and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed are available on pre-owned models. Contact dealer for details.
TRAILER MART OF CAVE CITY, INC IS NOT RESPONSIBLE FOR ANY OMITTED LIEN HOLDER(S) OR CUSTOMER NAMES FROM TITLES. IT IS THE RESPONSIBILITY OF THE CUSTOMER AND/OR LIEN HOLDER TO CONTACT TRAILER MART OF CAVE CITY, INC AT THE TIME OF PURCHASE IF A LIEN HOLDER IS TO BE LISTED ON THE TITLE AND IF THE TITLE IS TO BE MAILED TO THE LIEN HOLDER OR GIVEN DIRECTLY TO THE CUSTOMER. TITLES WILL BE MAILED TO THE LIEN HOLDER OR CUSTOMER AFTER THE TRANSACTION IS COMPLETE AND FUNDED. AFTER RECEIVING YOUR TITLE HAS BEEN MAILED IT IS YOUR RESPONSIBILITY TO GET A DUPLICATE TITLE IF YOUR TITLE IS LOST (TRAILER MART OF CAVE CITY, INC DOES NOT PROVIDE DUPLICATE OR LOST TITLES.)
It is the sole responsibility of the customer to verify the condition and existence of equipment on any listed unit. Trailer Mart of Cave City, Inc is not responsible for discrepancies, misprints, omissions, or changes to listed equipment related to or described on advertised units. All Sales Are Final with no cooling off period in accordance with the laws in the State of Kentucky. Pricing subject to change without notice.

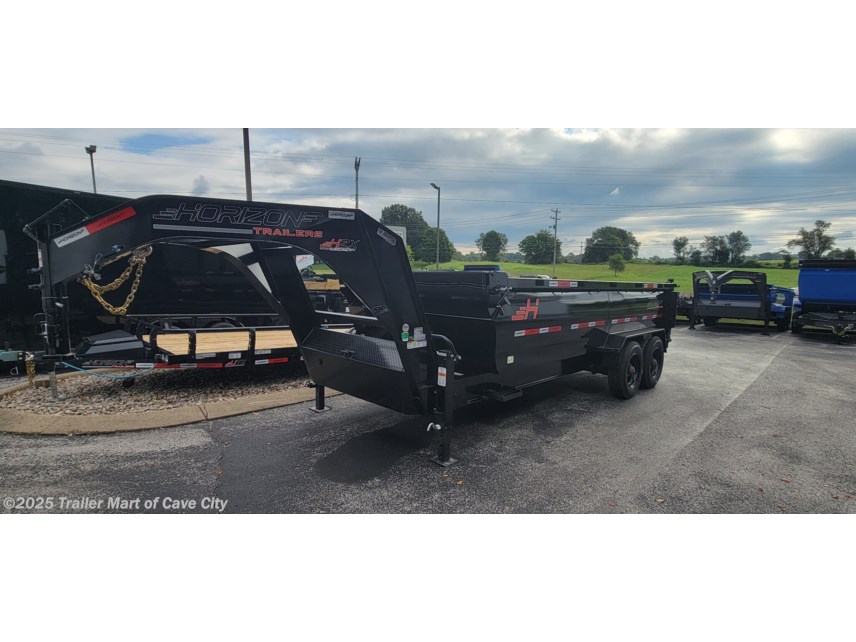

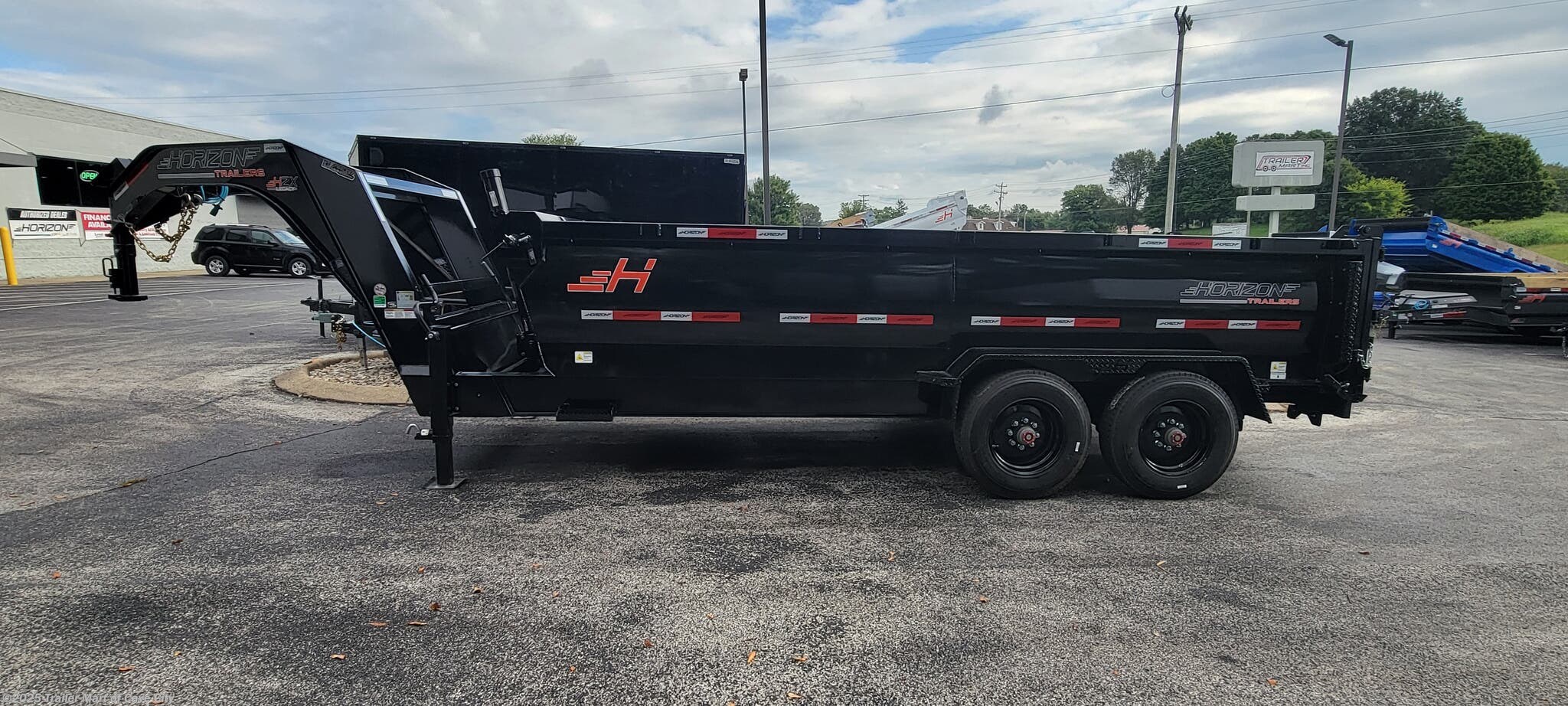

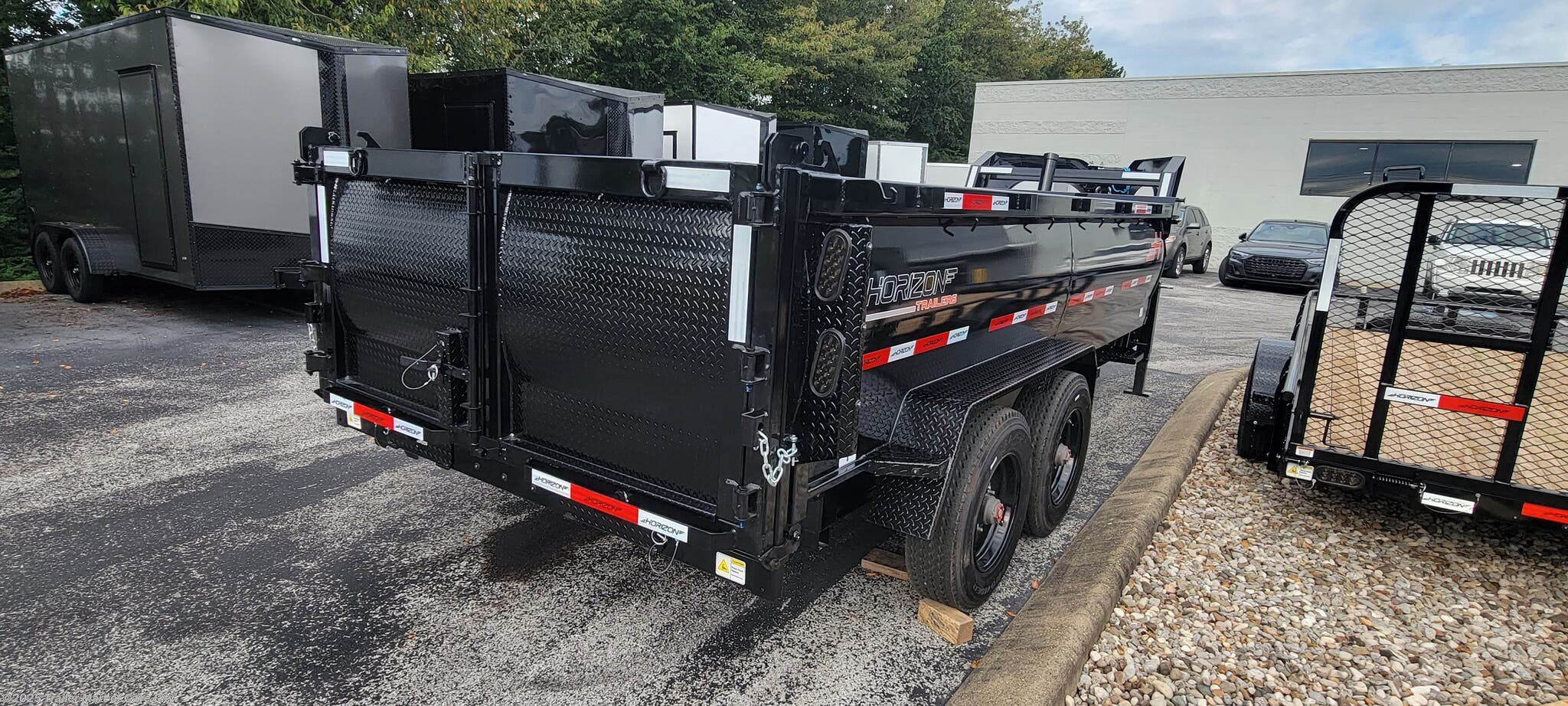

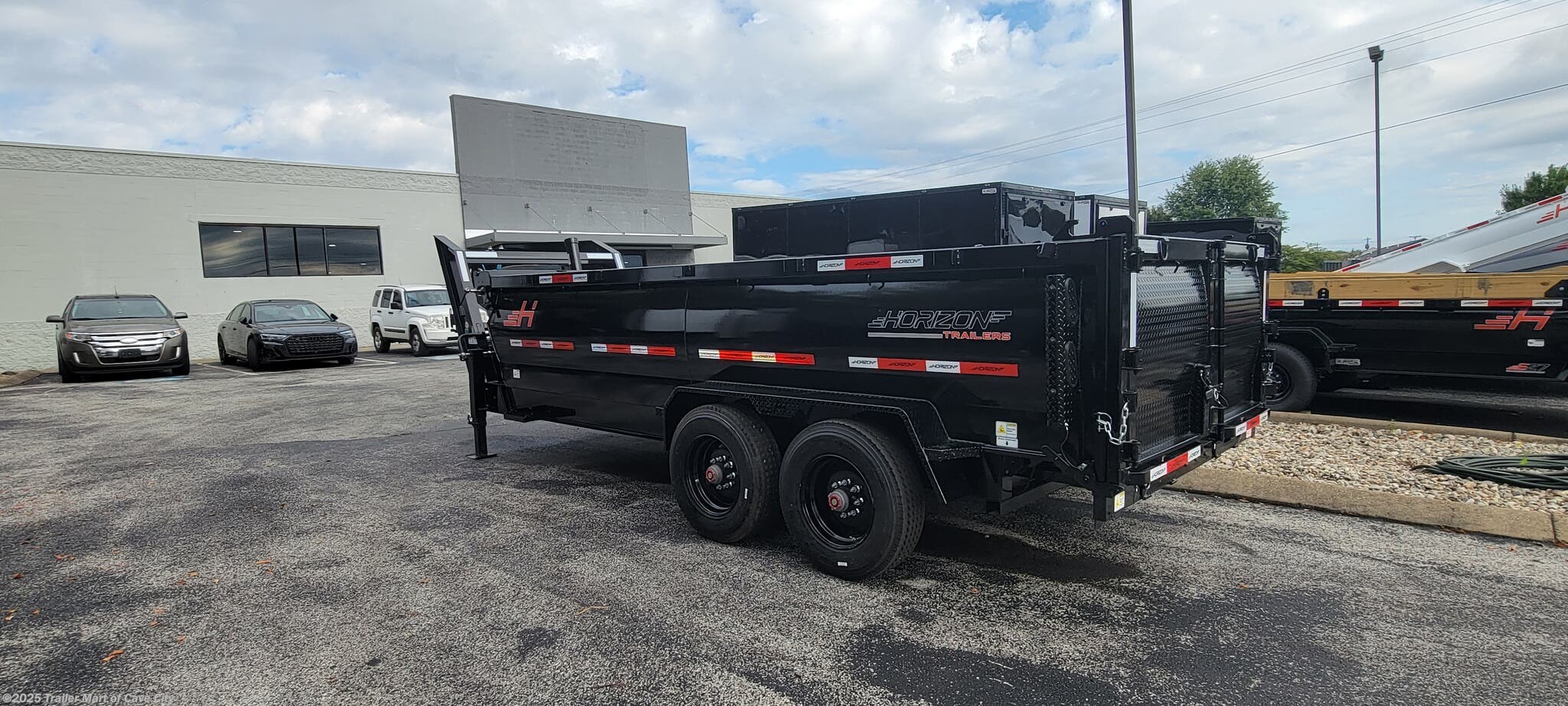

2026 Horizon Trailers HZX 16'GN 10K Telescopic Dump Trailer Gallery
